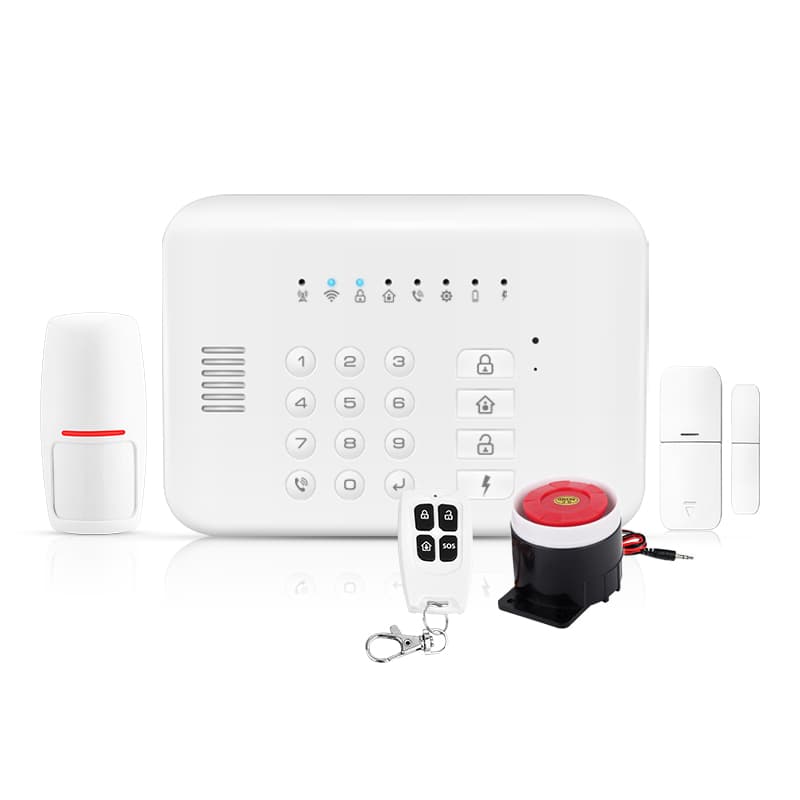

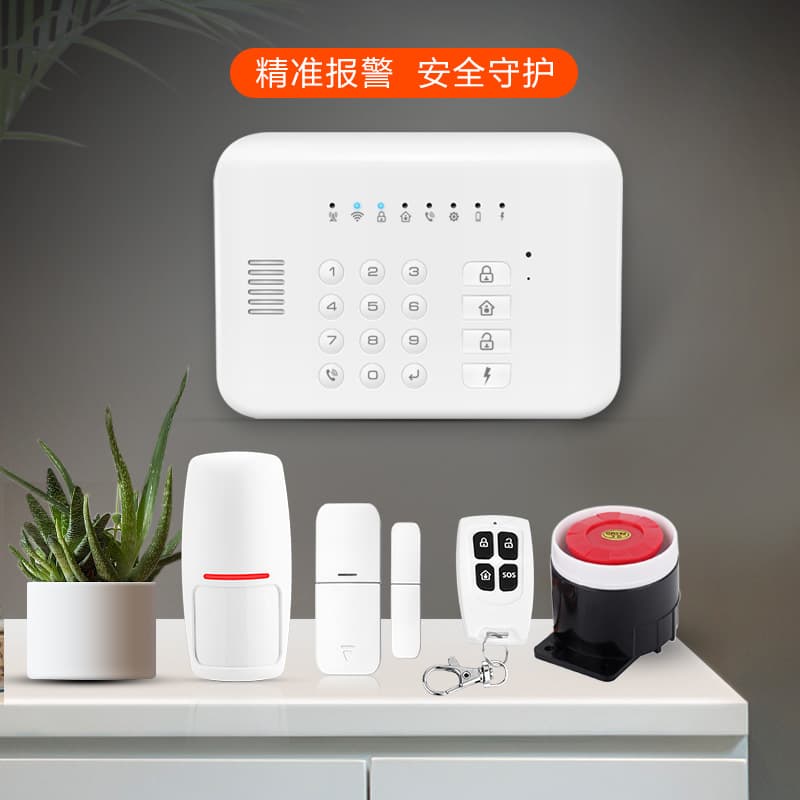

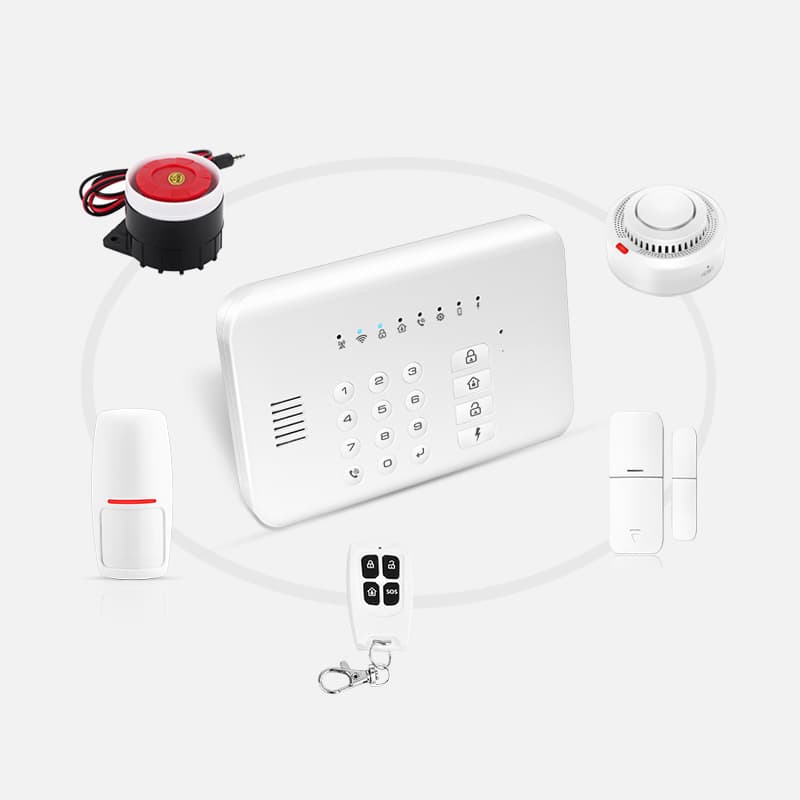

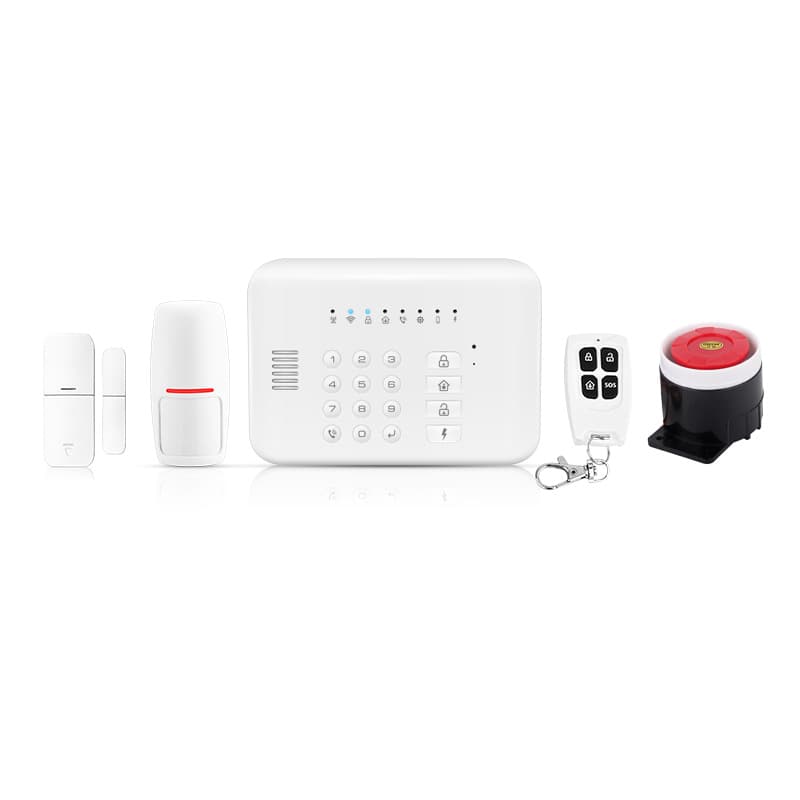

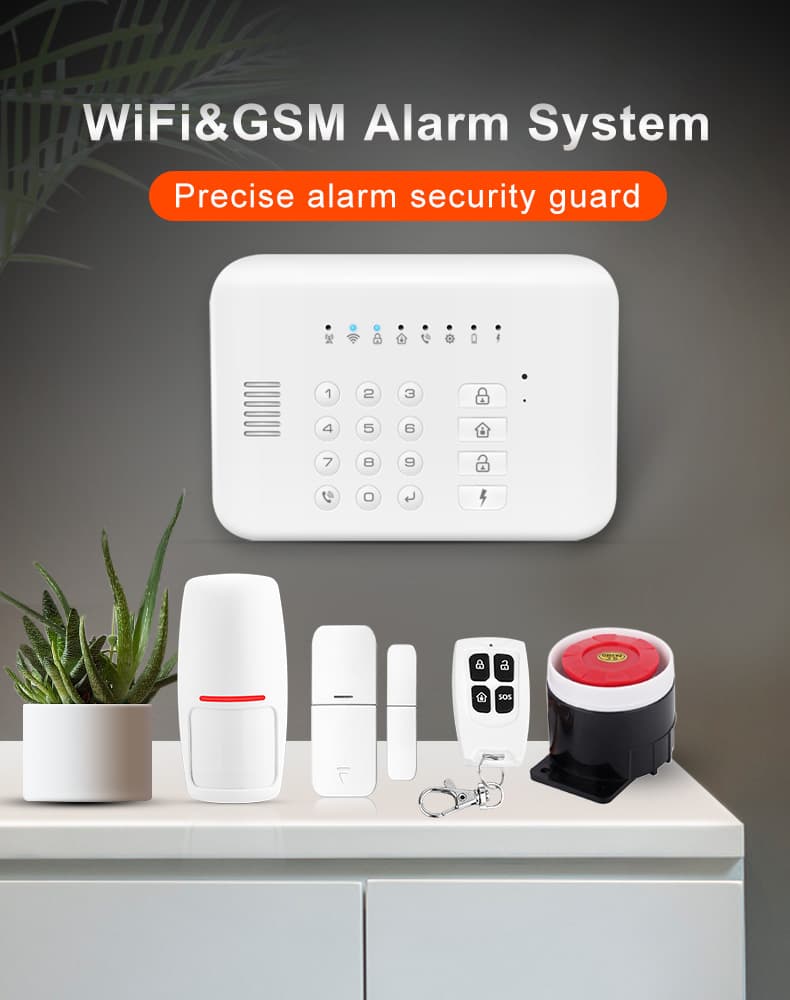

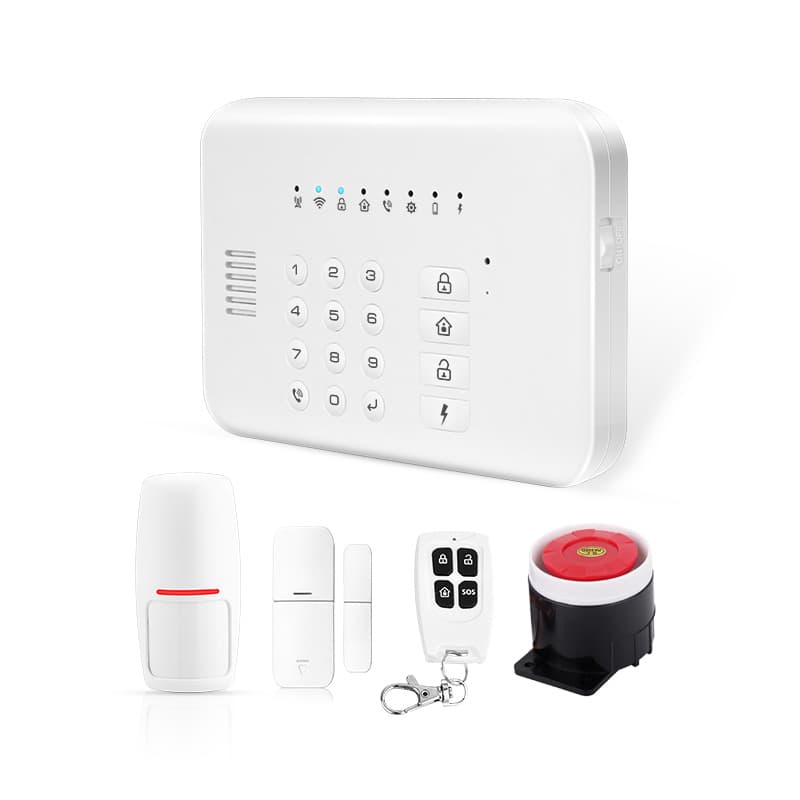

GW1 WiFi & GSM Home Alarm System – Dual‑Network Security Kit with 45 Zones

Dual‑Network Communication – Always On

• WiFi + GSM Dual‑Network – Connects via WiFi for daily use; GSM cellular backup ensures the system stays online even when WiFi fails or power is cut

• No Internet? No Problem – GSM network continues to send alarm calls and SMS

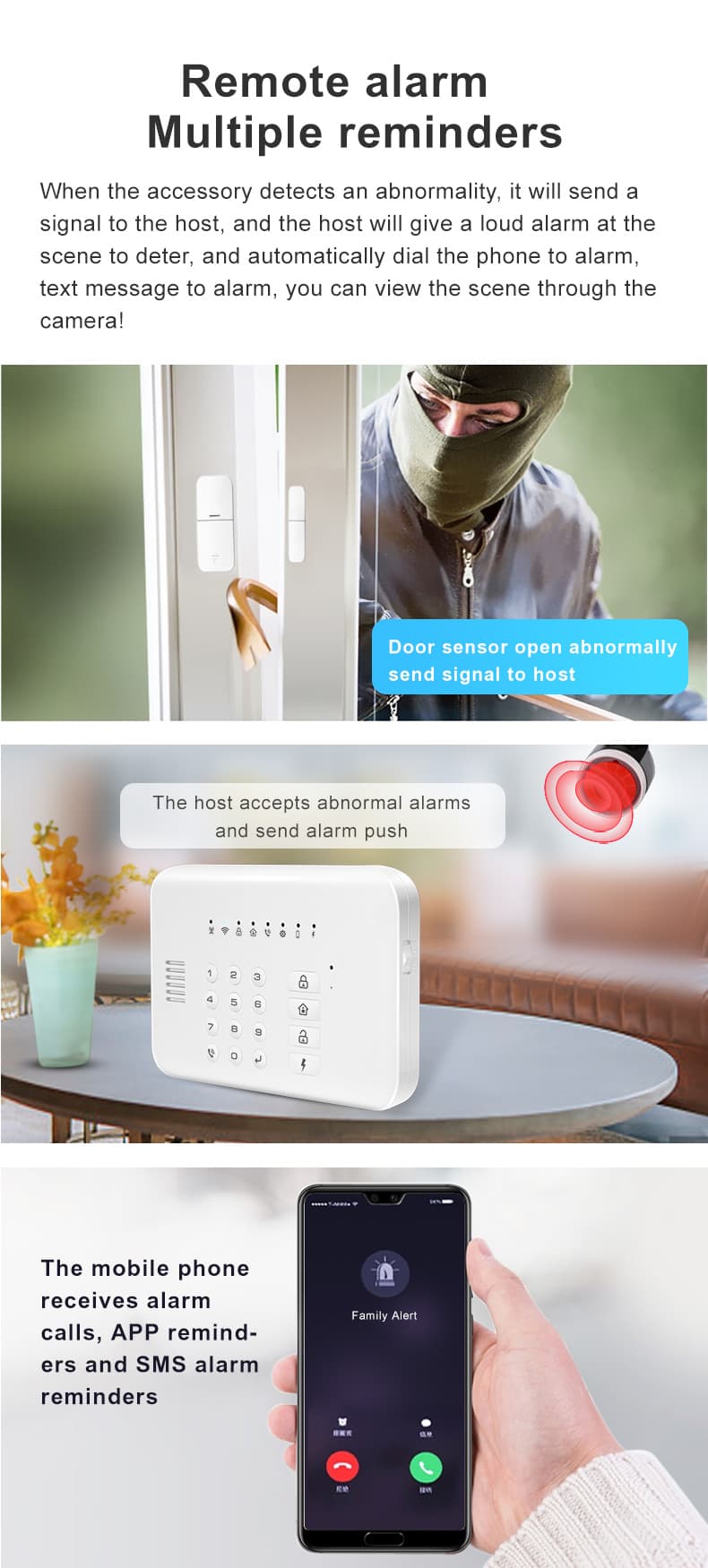

Comprehensive Alarm Notifications

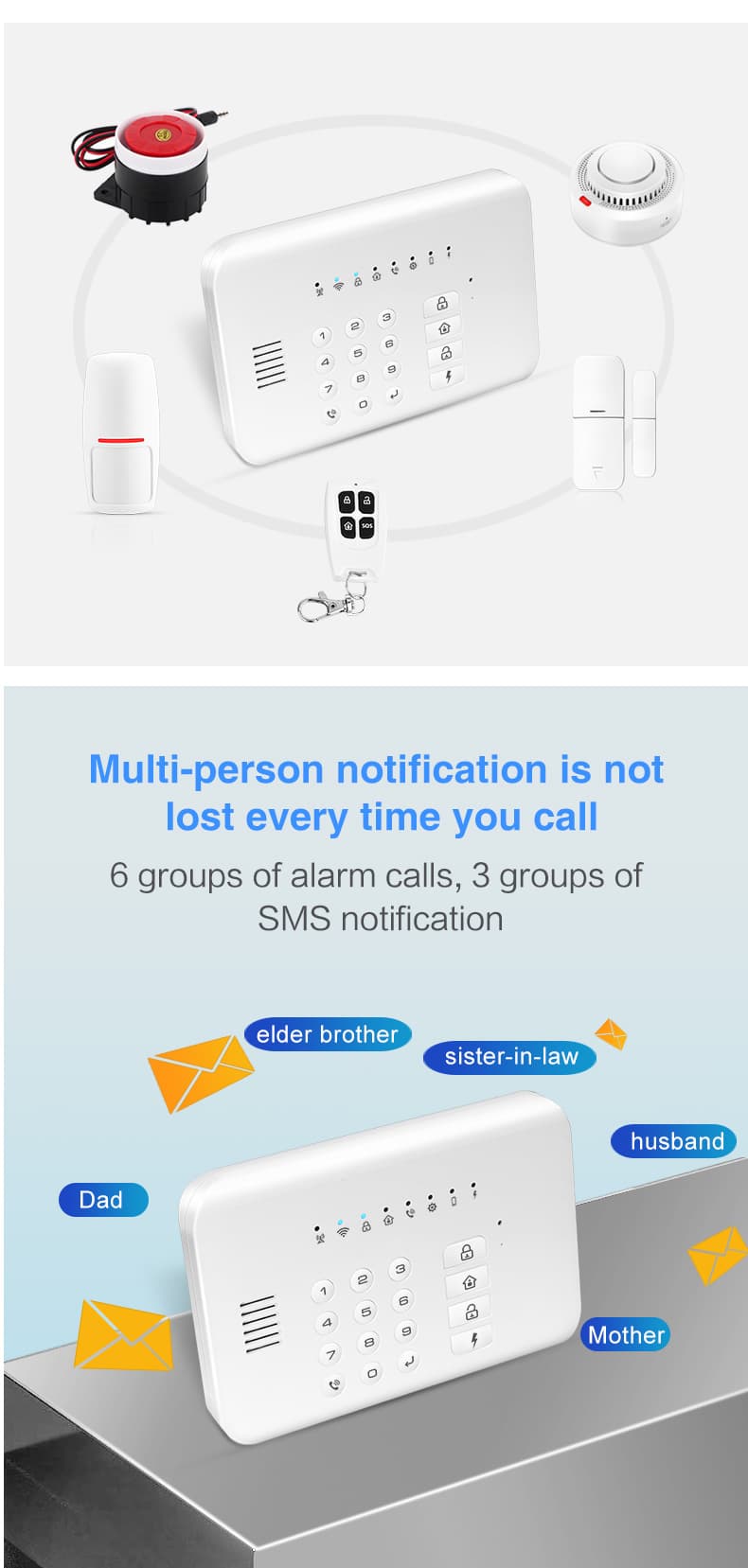

• 6 Alarm Phone Numbers – Sequential dialing; system calls all numbers until alarm is acknowledged

• 3 SMS Numbers – Receive text alerts for alarms, low battery, power failure, and arm/disarm status

• 120dB Built‑in Siren – Loud enough to deter intruders and alert neighbors

• APP Push Notifications – Real‑time alerts via Tuya / Smart Life APP

Smart Home Integration

• Tuya / Smart Life APP – Arm/disarm, check device status, view event logs, and receive notifications from anywhere

• Voice Control – Compatible with Amazon Alexa and Google Assistant for voice‑activated arming/disarming

• IFTTT Support – Integrate with thousands of other smart services

Flexible Control Methods

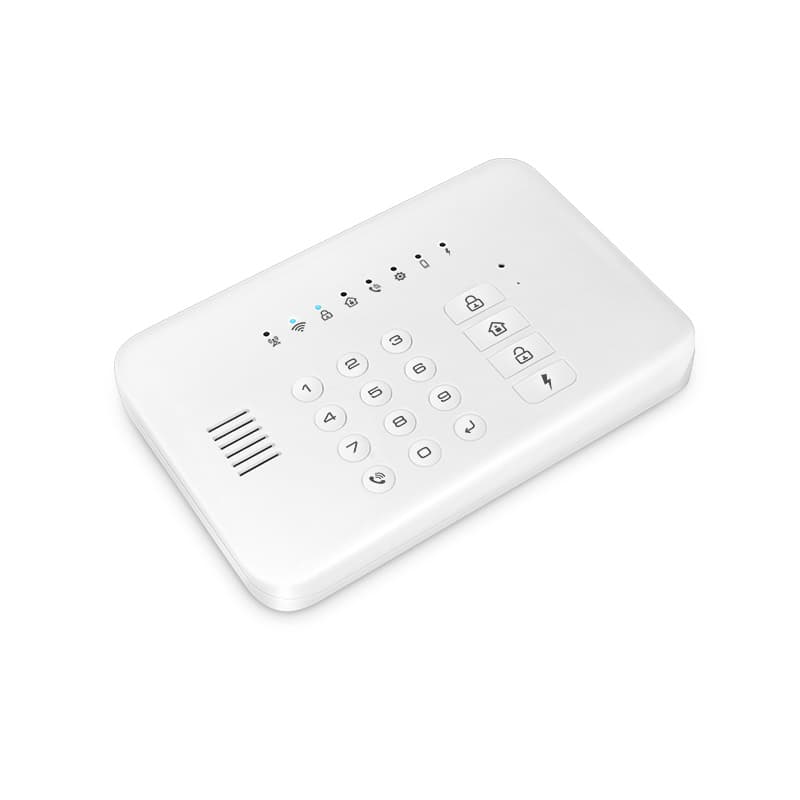

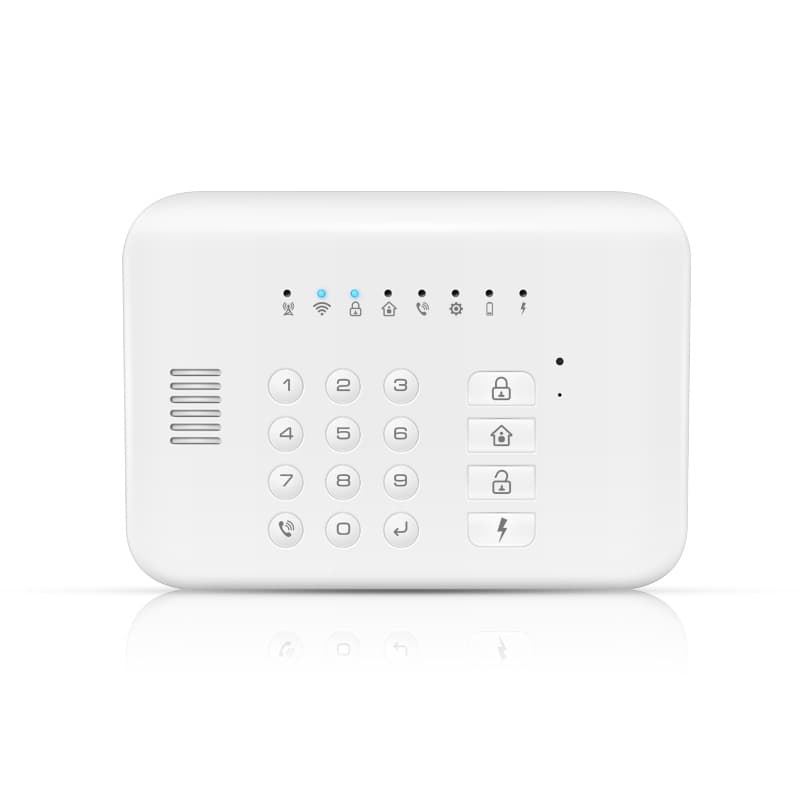

• Keypad on Panel – Arm, disarm, home mode, SOS with simple password entry (default 123456)

• Remote Control – One‑key operation for arm, disarm, home mode, and SOS

• Mobile APP – Control from anywhere with internet access

• Phone Call Control – Call the host, enter password, then press keys to arm, disarm, monitor, or intercom

Large Capacity & Expandability

• 45 Wireless Defense Zones – Supports up to 45 wireless detectors (PIR, door, smoke, gas, water, glass break, etc.)

• 8 Wireless Remotes – Add multiple remotes for family members

• Zone Type Configuration – Arm, Arm/Home, 24H, Bypass, Doorbell, Elder Zone, etc.

• Customizable Zone Names – Rename each zone for easy identification

Smart & Convenient Features

• 3‑Group Timed Arm/Disarm – Automatic arming/disarming by schedule; no need to remember daily

• 10‑Second Voice Recording – Record a custom address message that plays when answering an alarm call

• Elder Zone – Special monitoring that triggers an alert if no movement is detected within a set time period

• Two‑Way Intercom – Listen and speak through the panel

• Alarm Monitoring – Remotely monitor ambient sounds

• Low Battery Alert – APP notification when detector batteries are low

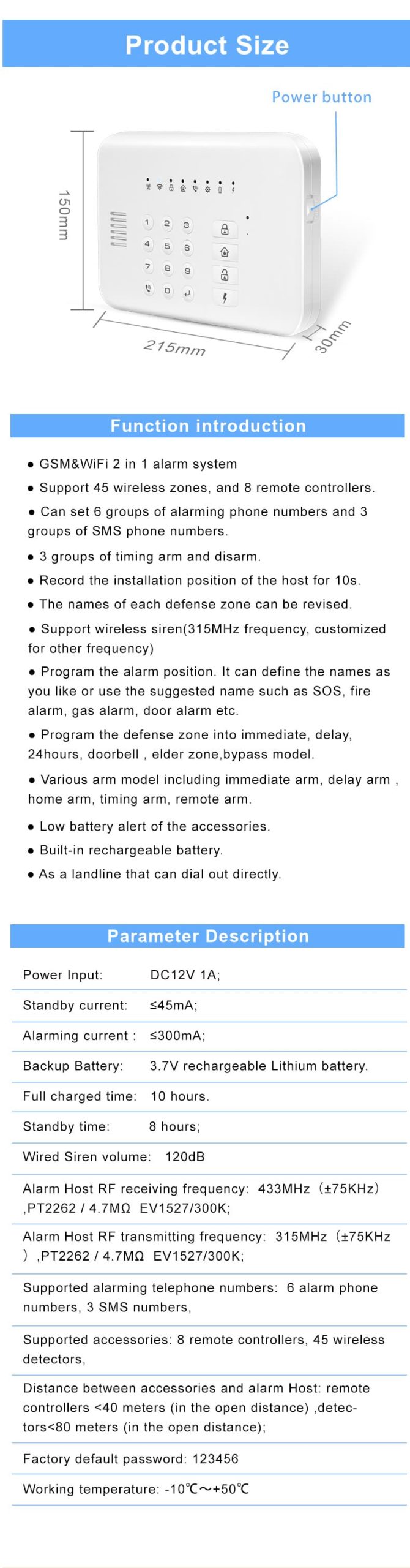

Power & Backup

• Power Input – DC12V / 1A

• Standby Current – ≤45mA

• Alarm Current – ≤300mA

• Backup Battery – Built‑in 3.7V rechargeable lithium battery

• Standby Time – Up to 8 hours

• Full Charge Time – Approximately 10 hours

Wireless Specifications

• RF Receiving Frequency – 433MHz ±75KHz (PT2262 / 4.7MΩ EV1527/300K); customizable for 315MHz

• RF Transmitting Frequency – 315MHz ±75KHz; customizable for 433MHz

• Accessory Range – Remotes <40m, detectors <80m (open area)

Easy Installation

• Wireless Accessories – All sensors connect wirelessly; no drilling required for most installations

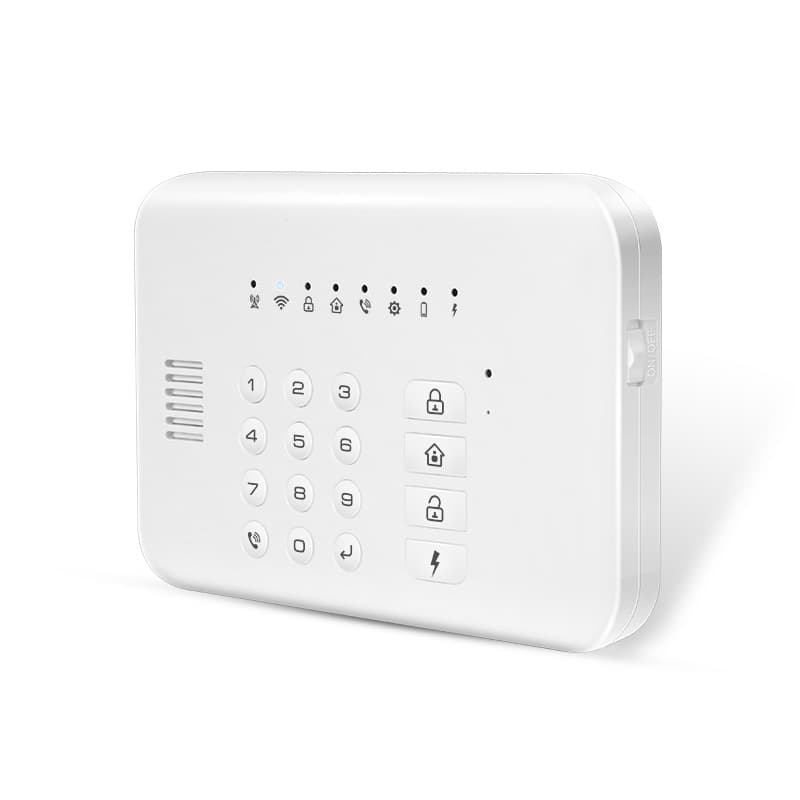

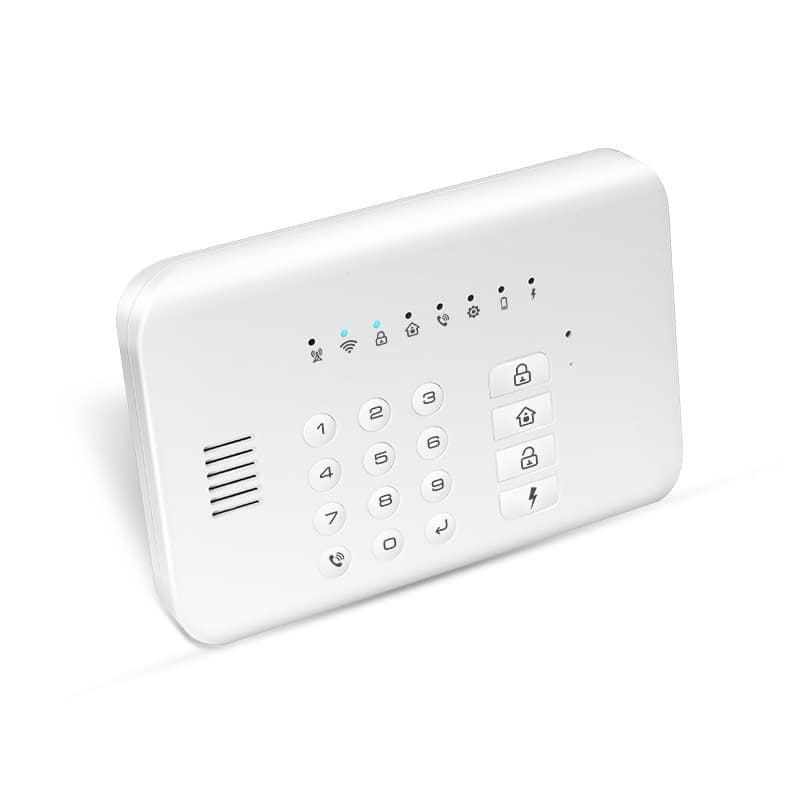

• Wall‑Mountable – Panel comes with mounting bracket; anti‑tamper design

• Plug‑and‑Play – Simple setup via Tuya APP; no complex programming required

Wide Applications

• Homes & Villas – Complete perimeter and indoor protection

• Apartments – Compact design fits any space

• Shops & Convenience Stores – Protects inventory and premises

• Offices – Monitors after‑hours activity
