Smart Security, Smarter Alerts
Connect cameras, sensors, and sockets. Get instant notifications and link devices for automated response. The heart of your smart security system.

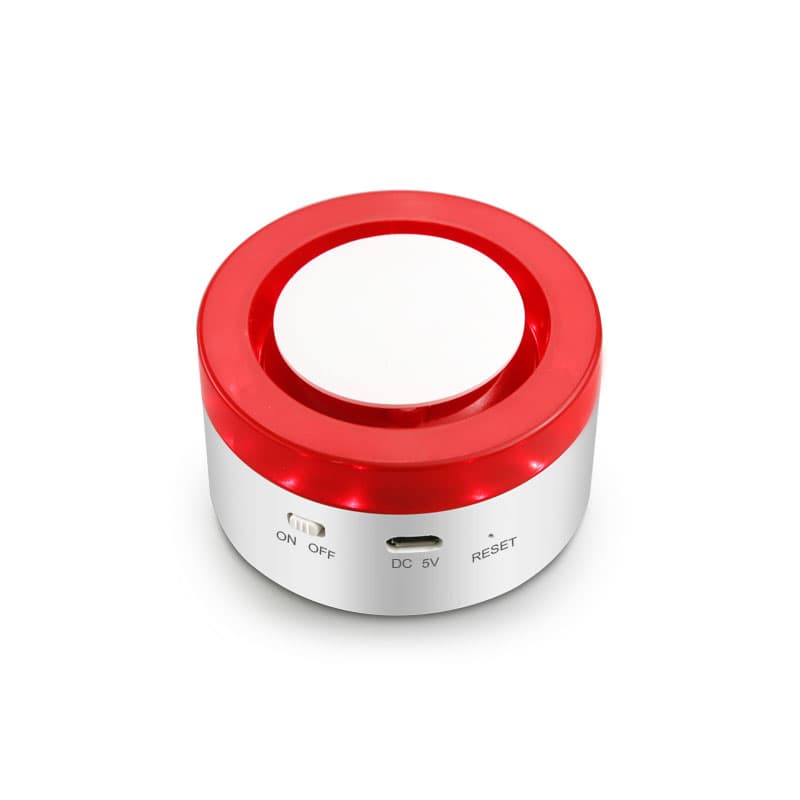

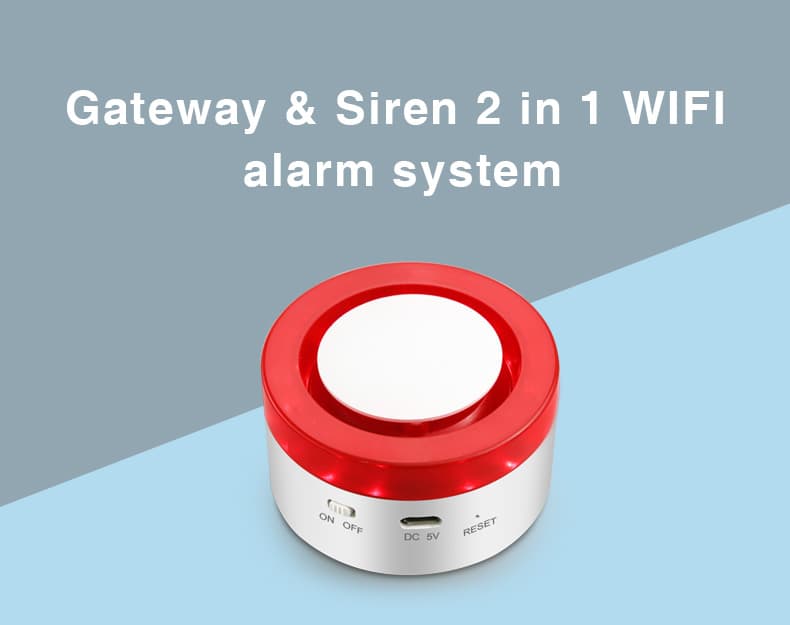

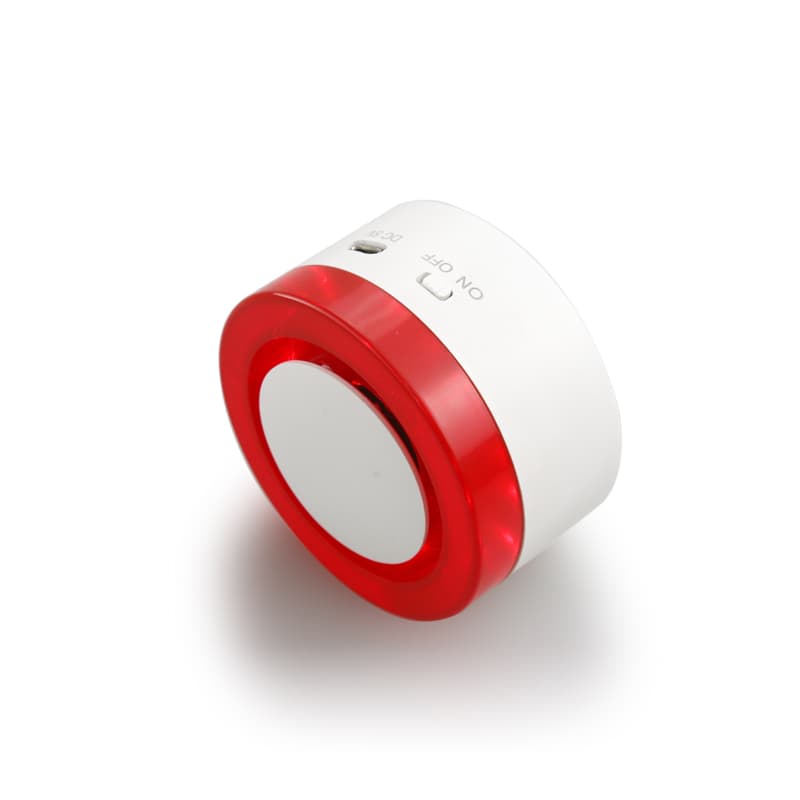

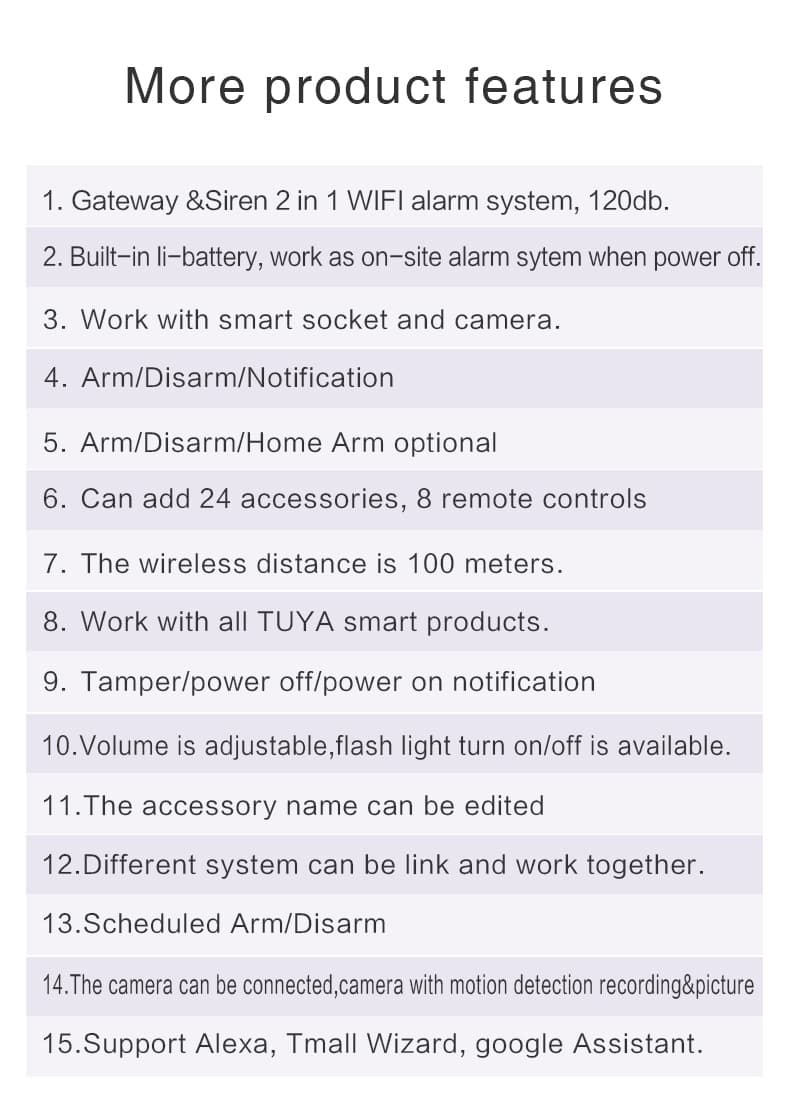

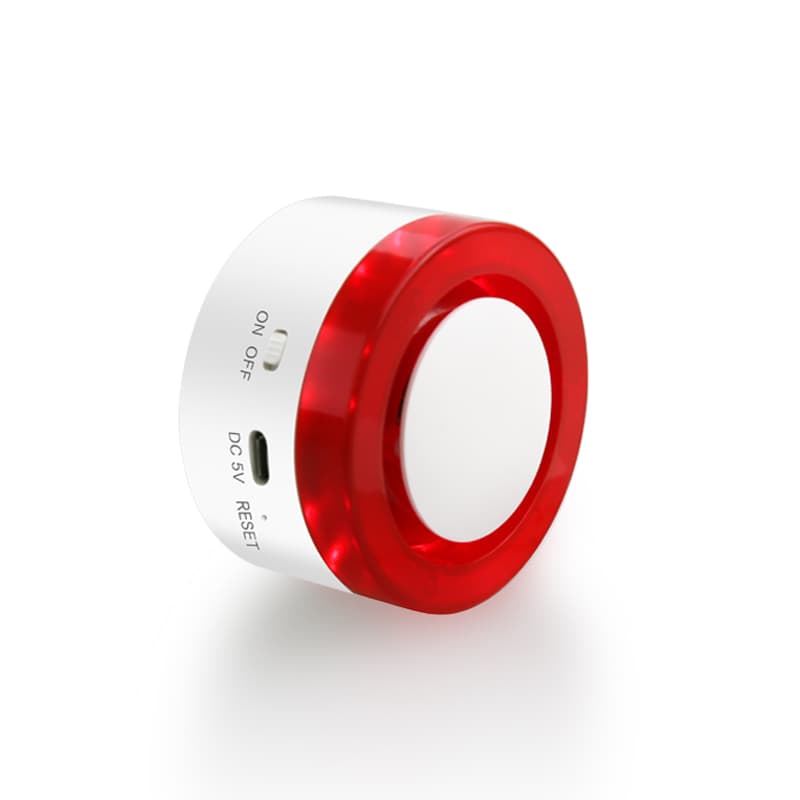

All‑in‑One Design – Combines alarm control panel and loud siren in a compact unit
120dB Alarm – Loud siren deters intruders and alerts neighbors
Away Arm – Full protection; siren sounds and light flashes when triggered
Home Arm – Silent protection; only light flashes, no siren sound – ideal for nighttime or when at home
Disarm – Only SOS alarm available; no alerts from regular detectors
WiFi 802.11 b/g/n (2.4GHz) – Direct connection, no hub required
Tuya / Smart Life APP – Arm/disarm remotely, receive notifications, view logs
Voice Assistants – Supports Amazon Alexa, Google Assistant, and Tmall Wizard

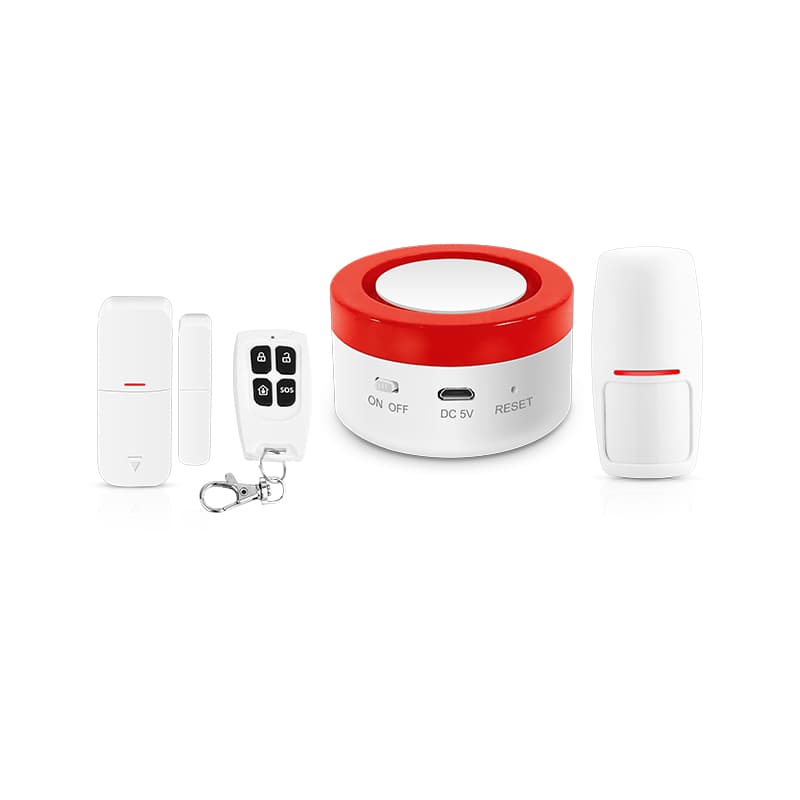

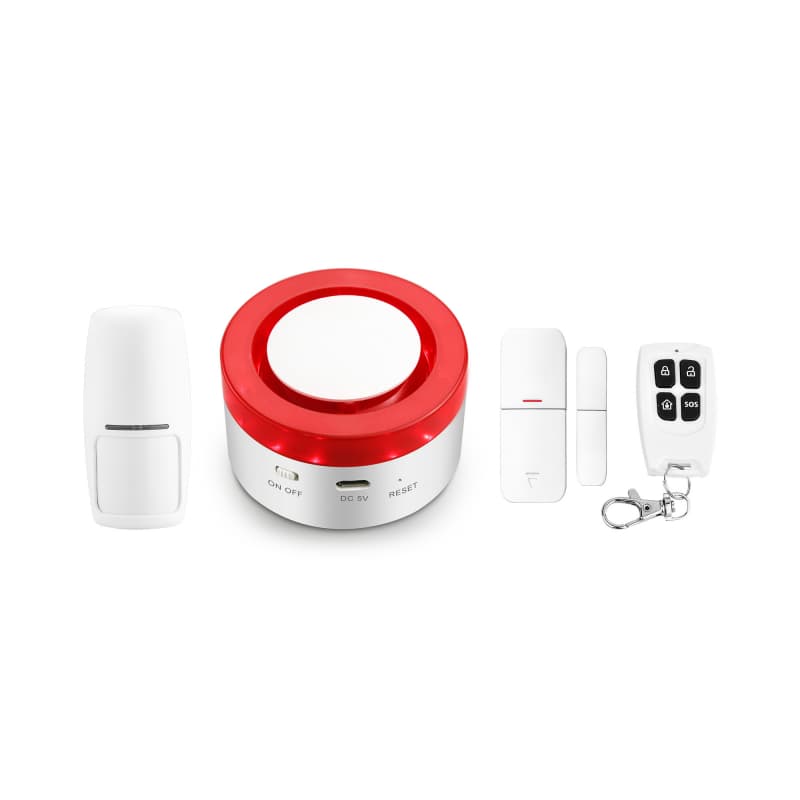

Up to 24 Wireless Detectors – Add door/window sensors, PIR motion detectors, smoke/gas/water sensors, etc.
Up to 8 Remote Controls – Easy arm/disarm for family members
Wireless Range – Detectors up to 100 meters (open area)
RF Frequency – 433MHz (customizable 300‑912MHz)
Power Input – DC 5V / 2A
Standby Current – ≤150mA
Alarm Current – ≤350mA
Built‑in Battery – 4.2V 300mAh rechargeable lithium battery
Full Charge Time – 5 hours
Power Failure Protection – System continues to work on battery during outage
Low‑Battery Detection – APP notification when detector batteries are low
System Power Off Detection – Alerts when mains power is disconnected
Tamper Detection – Alarm triggers if the siren is removed or opened
Volume Adjustable – High / Medium / Low
Beep Time Adjustable – 1‑180 seconds
Scheduled Arm/Disarm – Automatic arming/disarming by time
Camera Linkage – Connect with Tuya cameras; motion detection triggers recording and snapshot push
Device Grouping – Multiple sirens can work together; one triggered alarm triggers all
Work with Smart Sockets – Turn off appliances (water heater, AC, curtains) when away mode is armed
Compact Size – 65mm × 35mm (approx.)
Wall‑Mountable – Can be placed on a table or mounted on wall
Plug‑and‑Play – Simple APP setup; no complex wiring
Homes, apartments, villas
Offices, shops
Warehouses
Anywhere needing security monitoring
| Parameter | Specification |
|---|---|
| Model | H1 |
| Product Type | WiFi Smart Siren & Alarm Gateway |
| Network | WiFi 802.11 b/g/n (2.4GHz) |
| APP | Tuya Smart / Smart Life |
| Voice Assistants | Amazon Alexa, Google Assistant, Tmall Wizard |
| Siren Volume | 120dB (adjustable: High/Medium/Low) |
| Alarm Modes | Away Arm (sound+flash), Home Arm (flash only), Disarm (SOS only) |
| Maximum Detectors | 24 wireless detectors |
| Maximum Remotes | 8 remote controls |
| RF Frequency | 433MHz (customizable 300‑912MHz) |
| Wireless Range | ≤100 meters (open area) |
| Beep Time | 1‑180 seconds (adjustable) |
| Scheduled Control | Arm / Home Arm / Disarm (timing groups) |
| Power Input | DC 5V / 2A |
| Standby Current | ≤150mA |
| Alarm Current | ≤350mA |
| Backup Battery | 4.2V 300mAh rechargeable lithium battery |
| Full Charge Time | 5 hours |
| Battery Standby | Not specified (estimated several hours) |
| Tamper Detection | Yes |
| Low Battery Detection | Yes (APP notification) |
| Power Off Detection | Yes (APP notification) |
| Dimensions | 65 × 35 mm (approx.) |
| Operating Temperature | -10°C to +50°C |
| Package Includes | H1 siren/gateway, power adapter, user manual |
