Fast. Smart. Reliable.
150km print head life, automatic proofreading, and intelligent temperature control. No ink, no ribbon – just thermal paper.

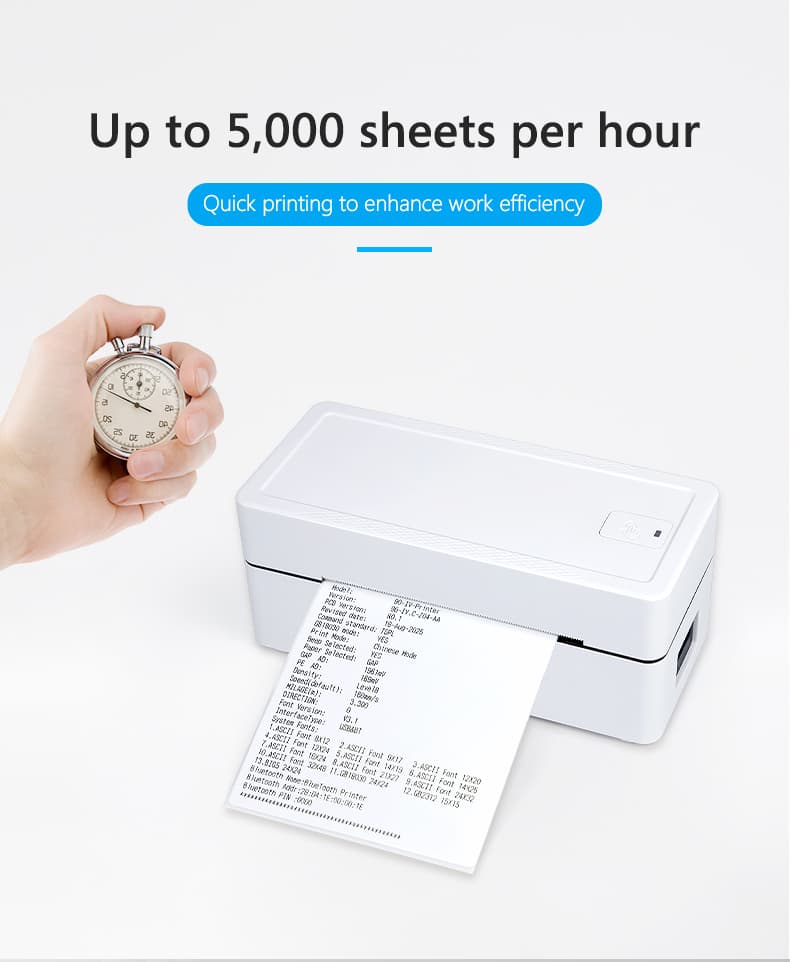

Print Speed – Up to 160mm/s, delivers up to 5000 labels per hour
High Resolution – 203dpi (8 dots/mm, 832 dots/line) for crisp text, barcodes, and graphics
Long‑Life Print Head – 150km durability for continuous high‑volume use
Adjustable Paper Width – 30‑110mm, accommodates various label sizes

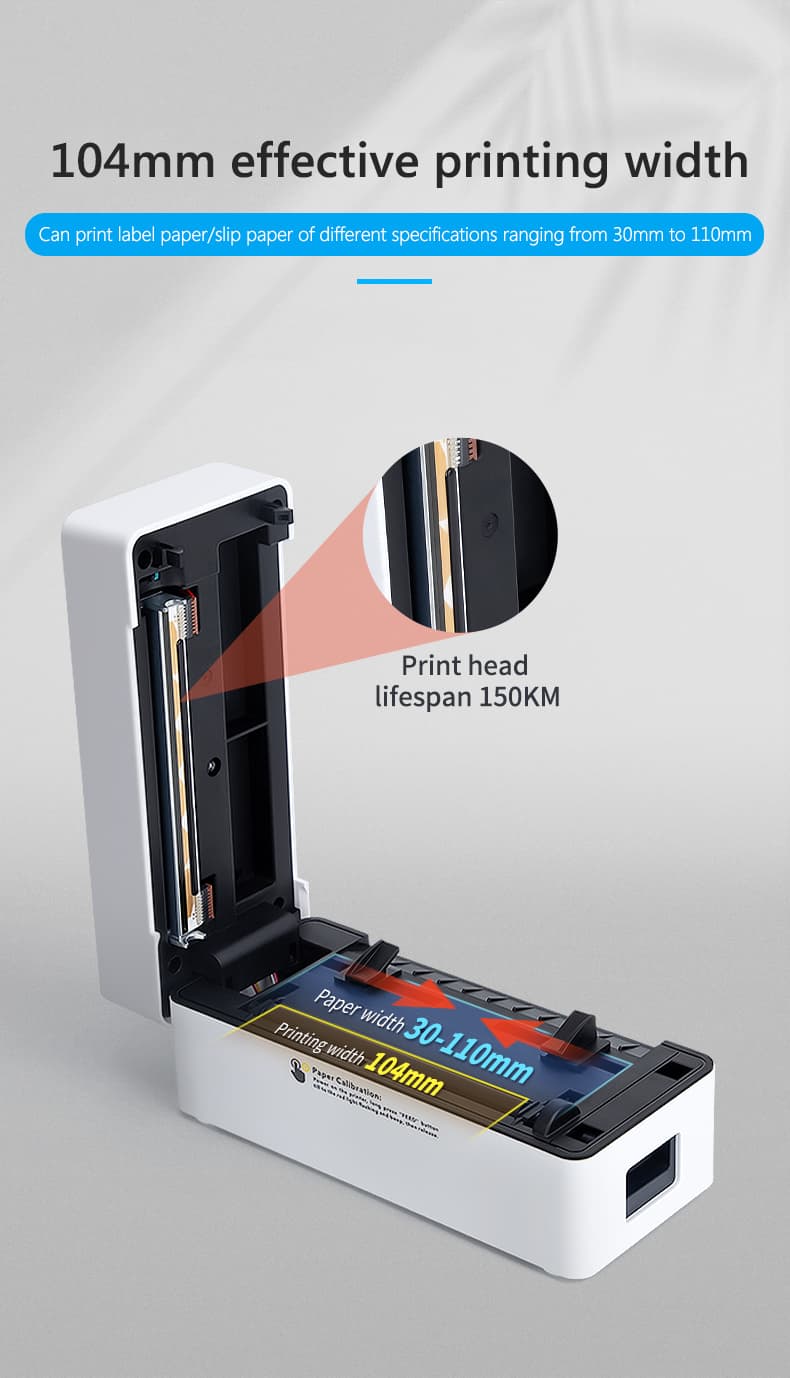

Effective Print Width – 104mm, prints wide labels with ease
Paper Types – Label paper, continuous paper, folding paper

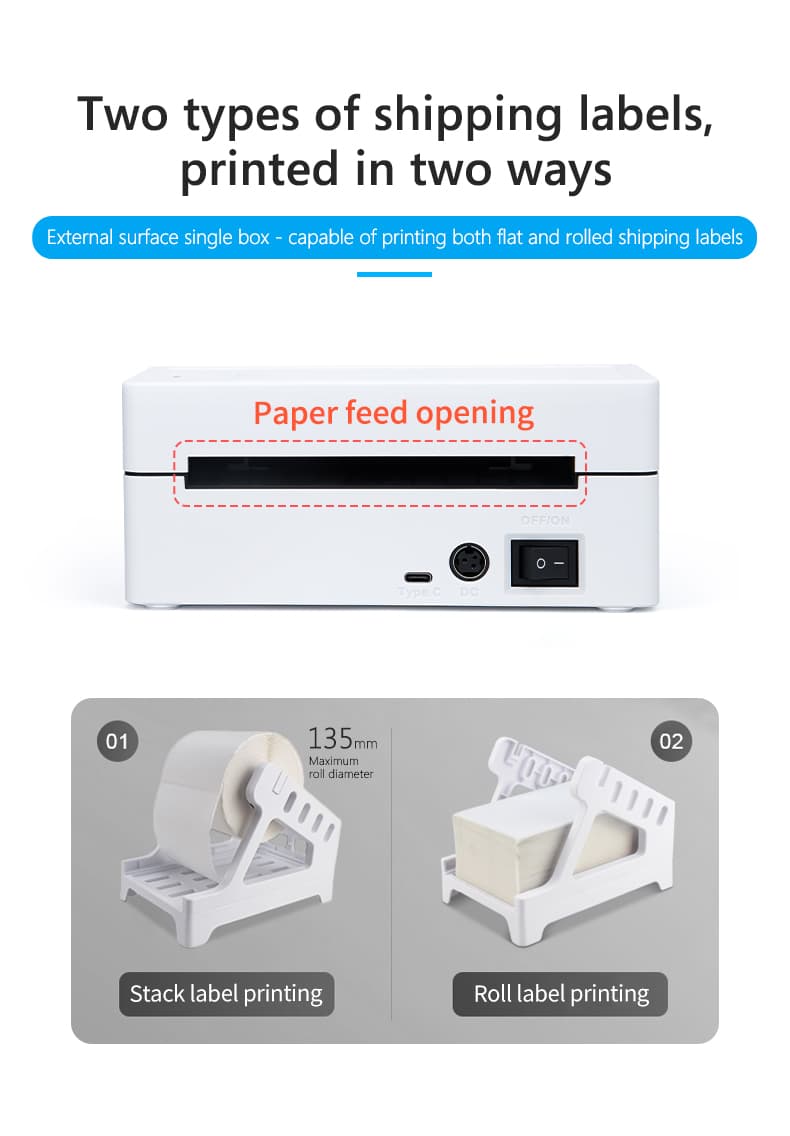

Dual‑Mode Printing – Supports both roll labels (max Ø135mm) and stack labels via external bracket

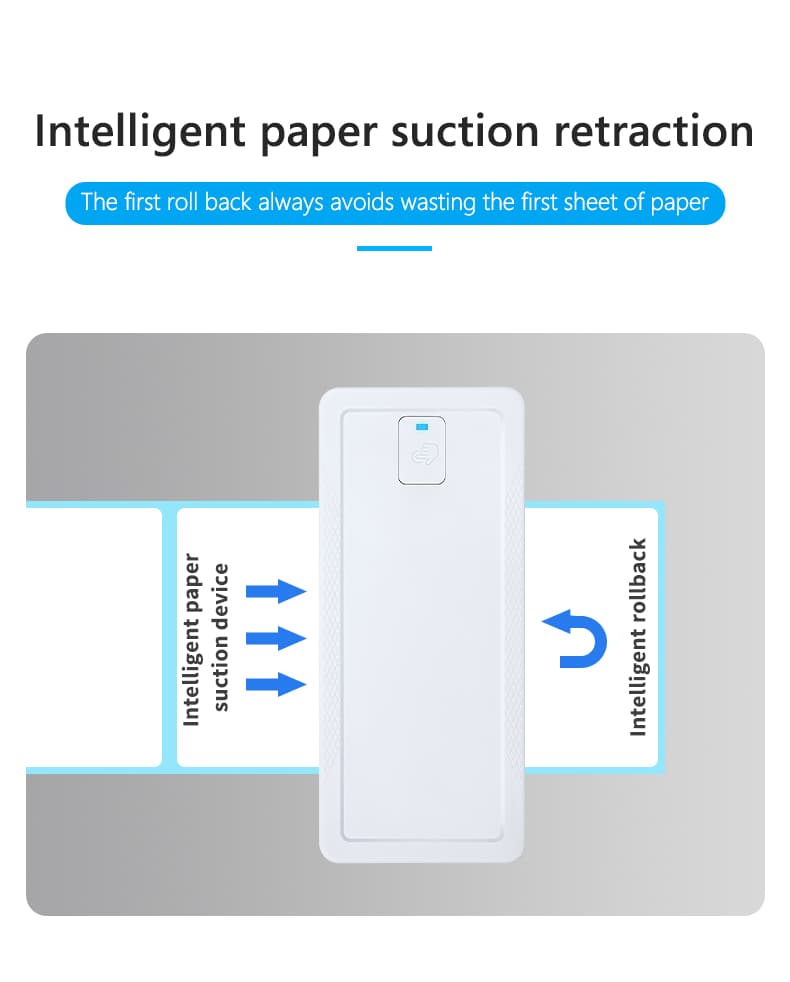

Intelligent Paper Feed Retraction – Automatically pulls back the first sheet to avoid wasting the first label

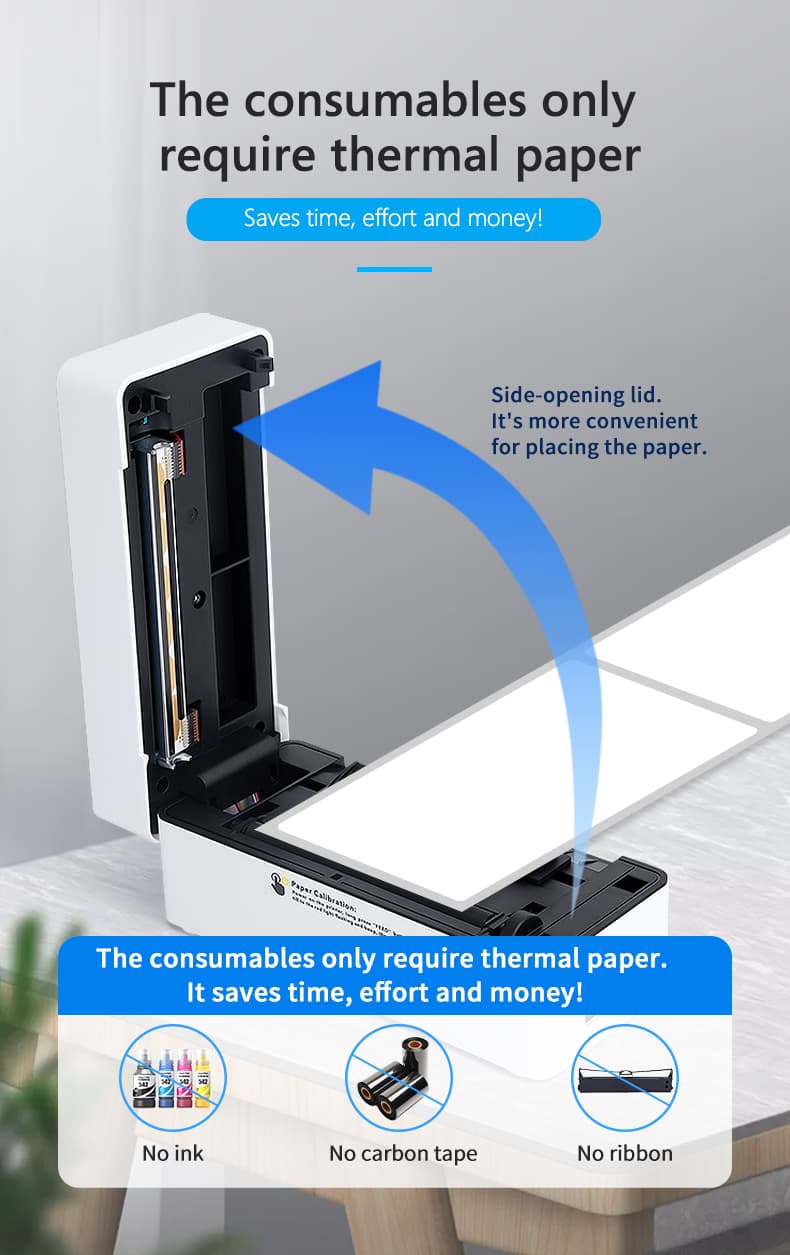

No Ink, No Ribbon – Direct thermal printing saves consumable costs
Automatic Proofreading – Ensures stable, accurate printing
Intelligent Temperature Control – Prevents overheating, extends printer life
Interface Options – USB standard; optional Bluetooth or WiFi module

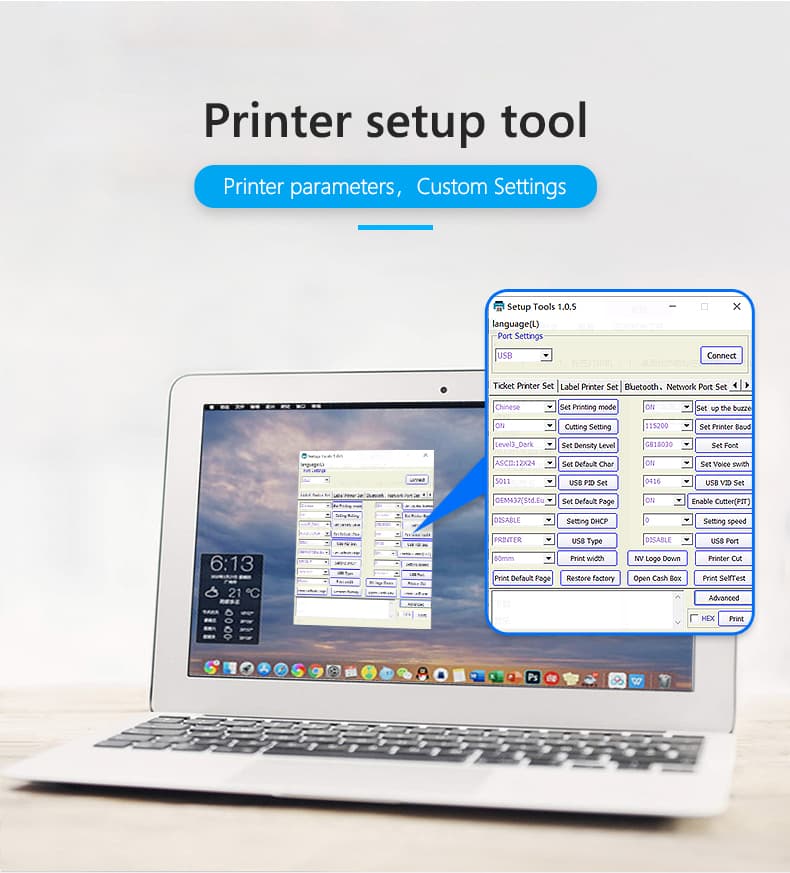

Printer Setup Tool – Customize parameters, density, cutter, and more via PC
System Compatibility – Windows 2003/XP/7/8/10, MACOS
ERP Integration – Works with 99% of market ERP software (Feng Huodi, Aiyong Jiaoyi, Wangdianbao, Print Expert, Wukong Jiaoyi, Super Store Manager, etc.)
Courier Support – Compatible with YTO, ZTO, STO, Best Express, Yunda, EMS, SF‑Express, JD.com, China Post, UC Express, and many more

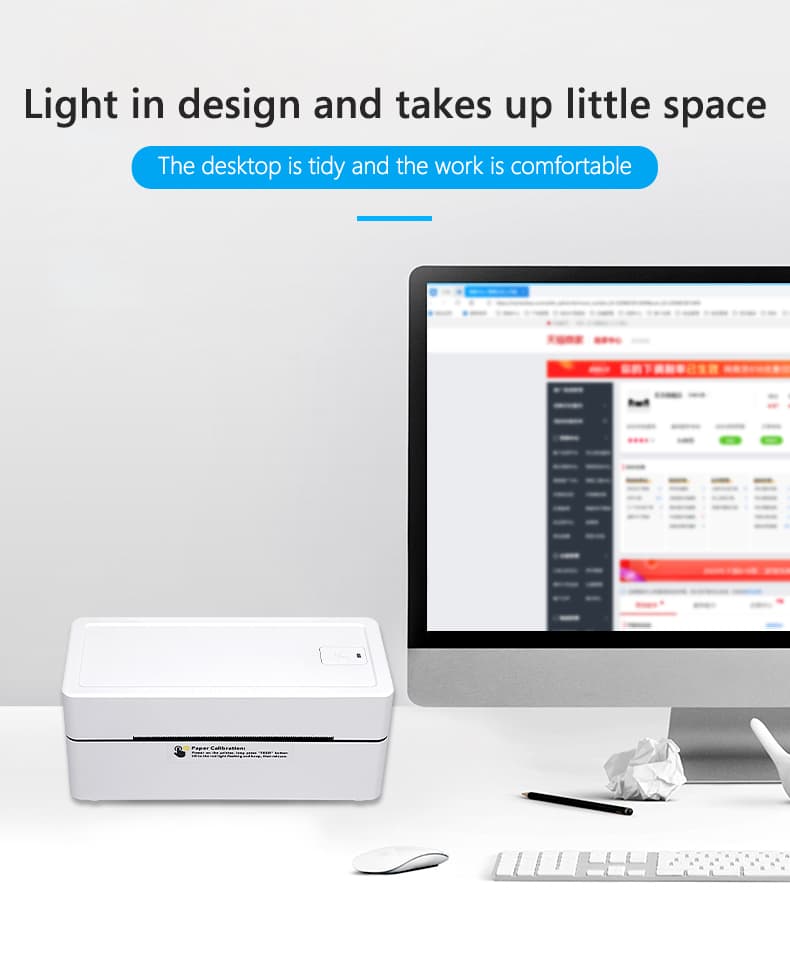

Space‑Saving Design – 180 × 78 × 75 mm, weighs only 458g

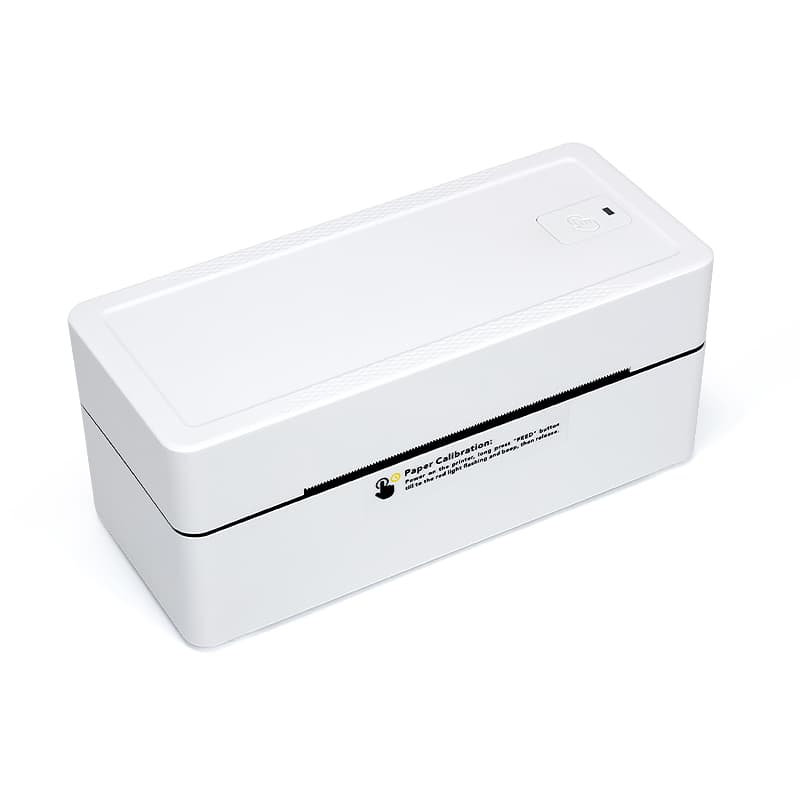

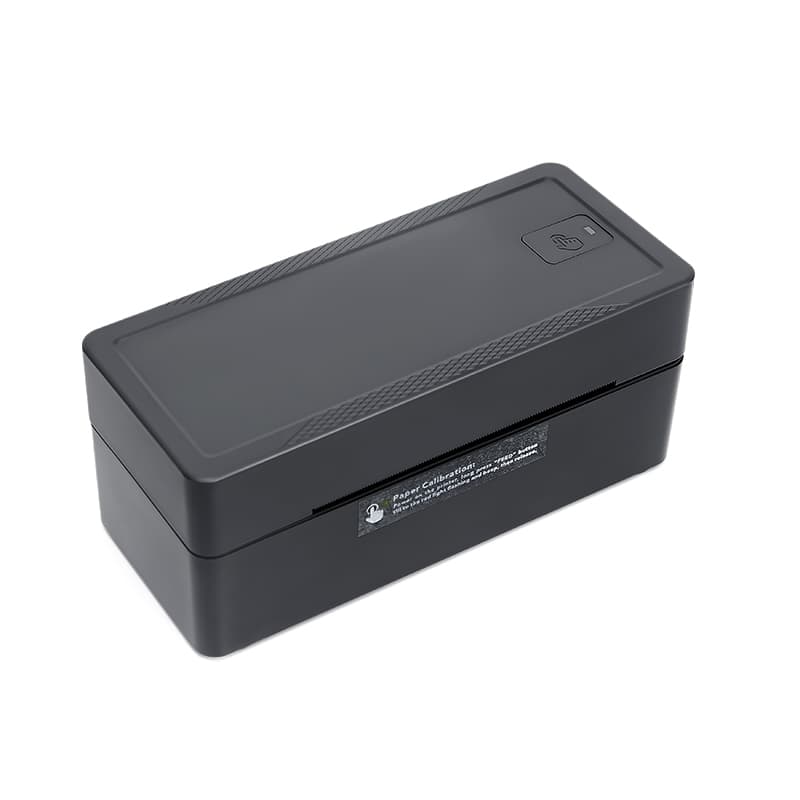

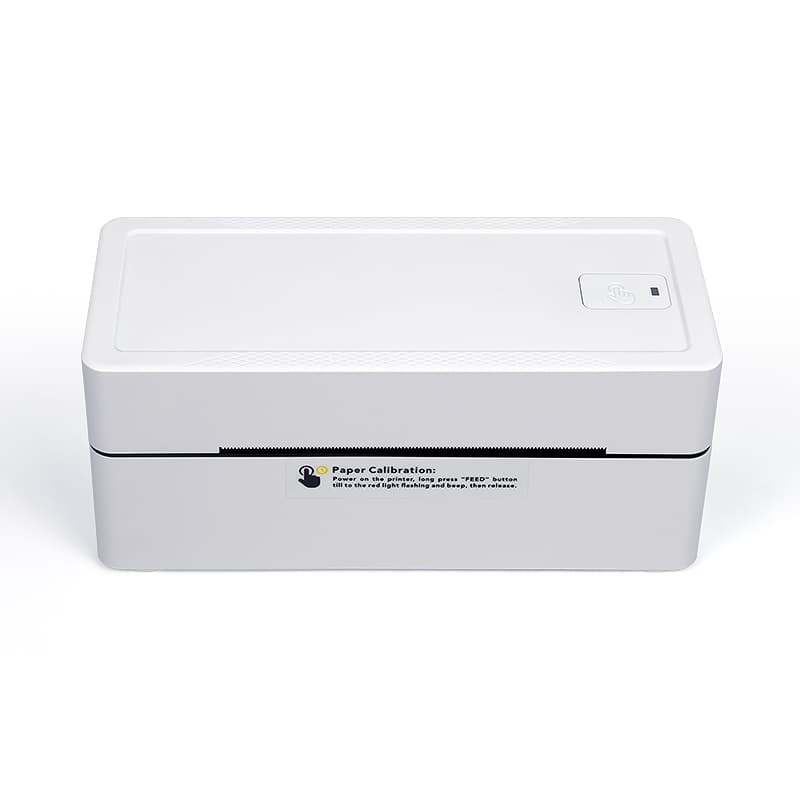

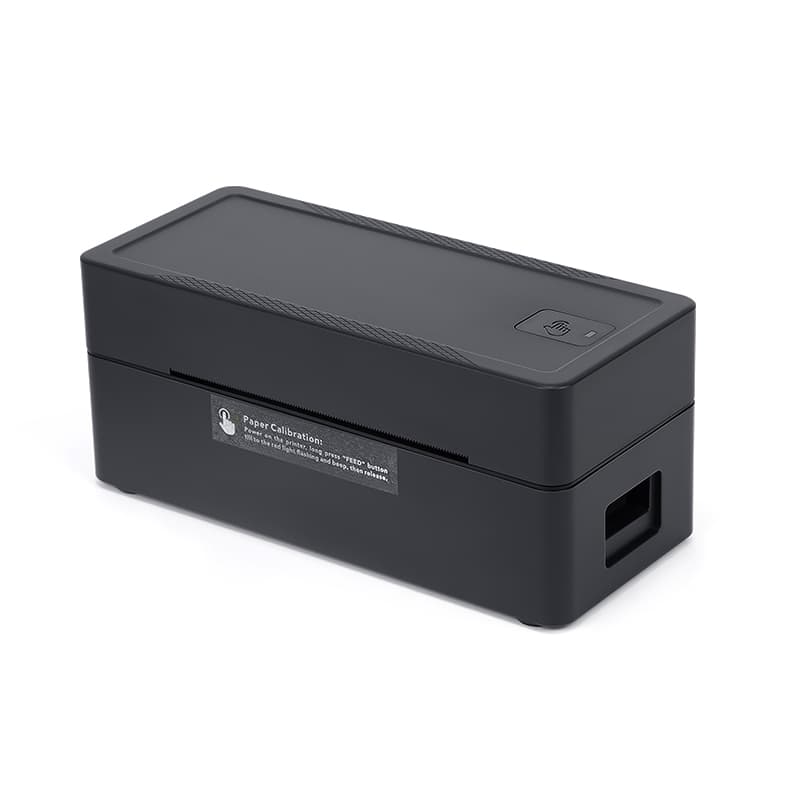

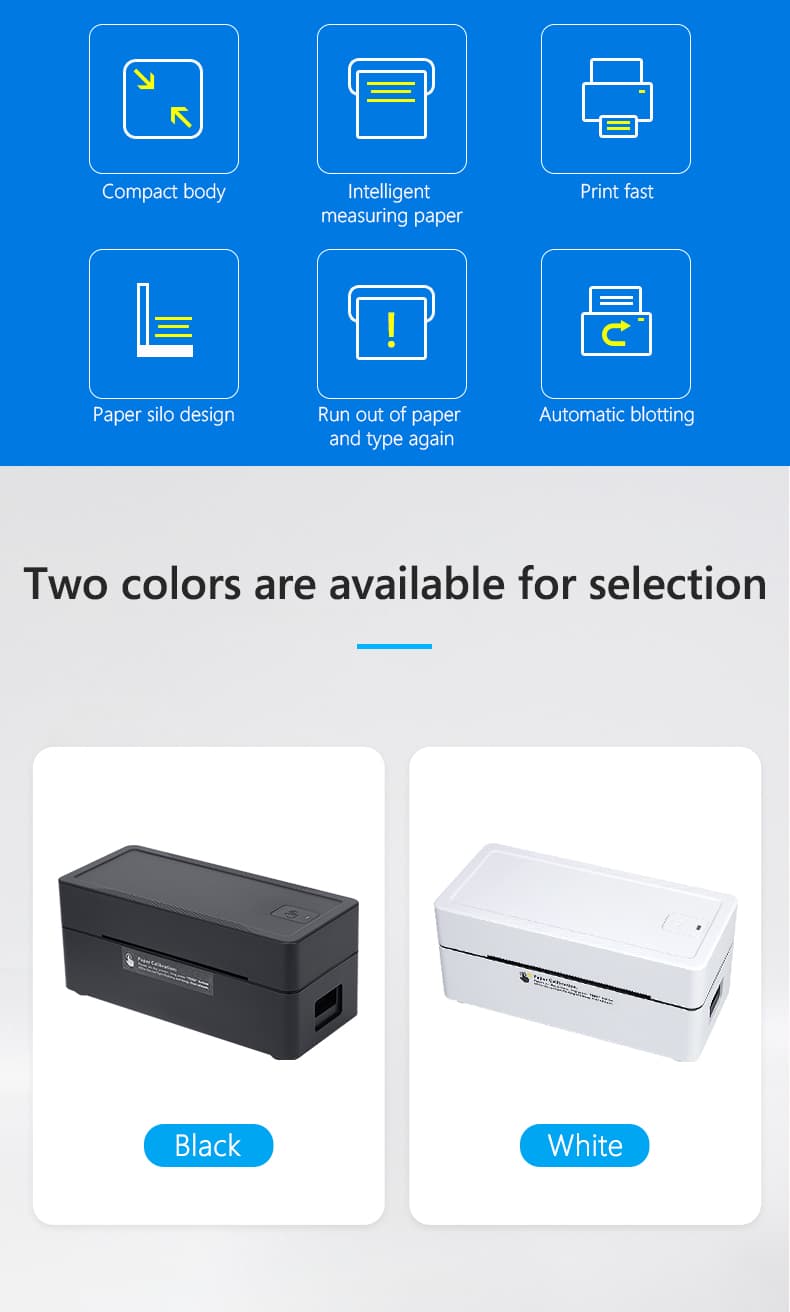

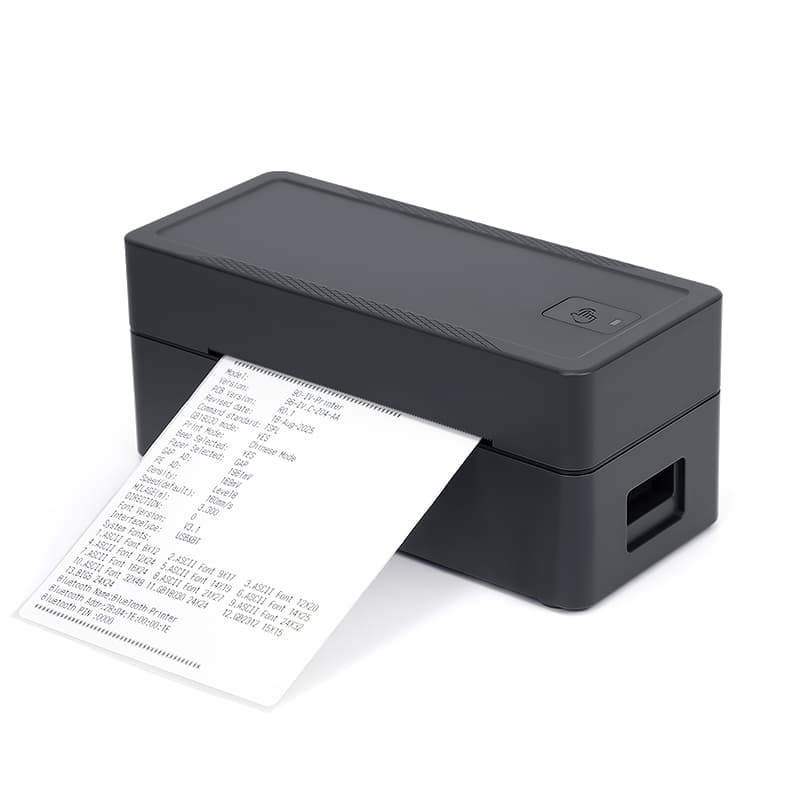

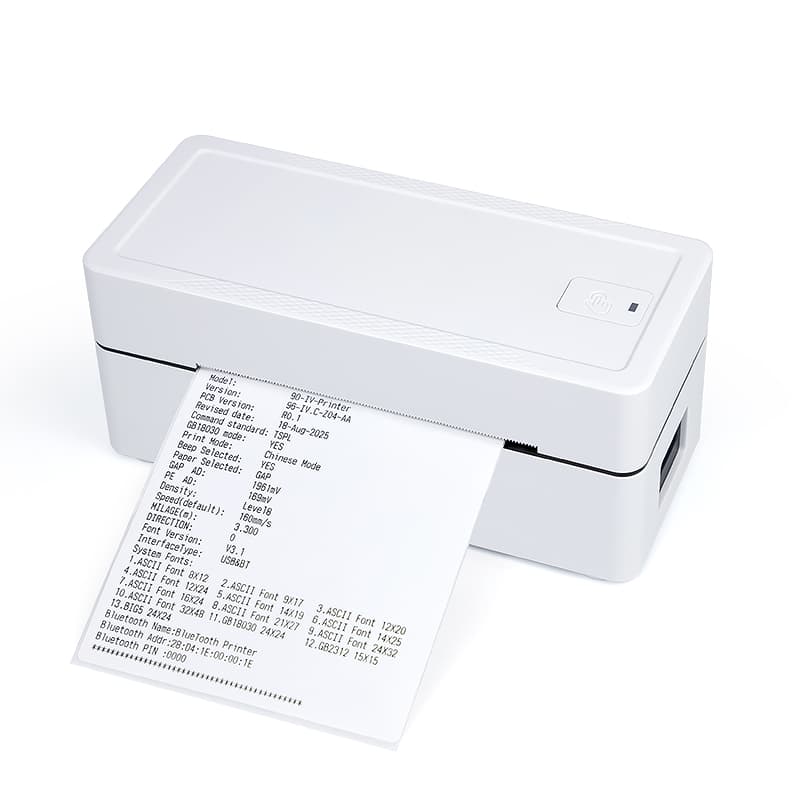

Two Color Options – Black or white to match any workspace
Robust Construction – Printer mechanism life 13 million lines, MTBF 3000 hours

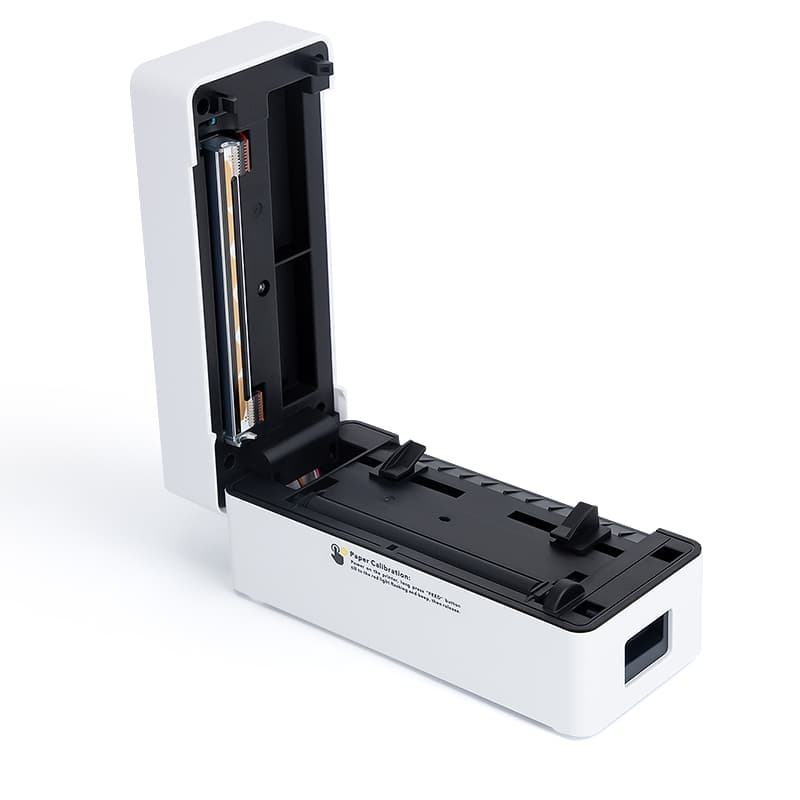

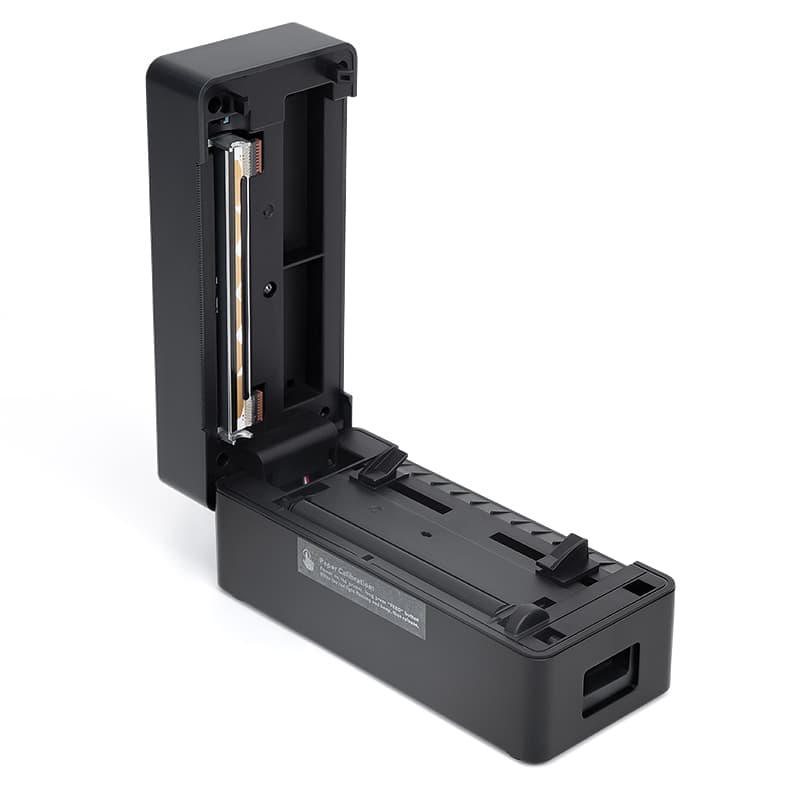

Simple Paper Loading – Clamshell lid opens for quick media changes
Automatic Blotting – Prevents paper jams and misprints
Status Indicators – Clear LED alerts for power, connection, and errors
E‑commerce shipping labels
Logistics express waybills
Retail price tags and barcode labels
Warehouse inventory labels
Manufacturing asset tracking
| Parameter | Specification |
|---|---|
| Model | TDL408H |
| Printing Method | Direct thermal line printing |
| Print Speed | Up to 160mm/s |
| Print Volume | Up to 5000 labels/hour |
| Resolution | 203 dpi (8 dots/mm), 832 dots/line |
| Effective Print Width | 104mm |
| Paper Width | 30‑110mm (adjustable) |
| Paper Thickness | 0.06 – 0.30mm |
| Paper Types | Label paper, continuous paper, folding paper |
| Max Roll Diameter | 135mm (with external bracket) |
| Print Head Life | 150 km |
| Printer Mechanism Life | 13 million lines |
| MTBF | 3000 hours |
| Interface | USB 2.0 (optional Bluetooth / WiFi) |
| Print Commands | TSPL (CPCL / ESC/POS optional) |
| 1D Barcodes | UPC‑A, UPC‑E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128 |
| 2D Barcodes | QR Code, PDF417 |
| Fonts | Font A: 12×24, Font B: 9×17, Chinese: 24×24 |
| Character Size | Font A: 1.5×3.00mm, Font B: 1.13×2.13mm, Chinese: 3.00×3.00mm |
| Characters Per Line | Font A: 32, Font B: 42, Chinese: 16 |
| Supported Systems | Windows 2003/XP/7/8/10, MACOS |
| Power Supply | DC 24V / 2A |
| Dimensions (W×D×H) | 180 × 78 × 75 mm |
| Weight | 458g |
| Operating Temperature | 0°C – 50°C |
| Operating Humidity | 20% – 85% RH (non‑condensing) |
| Storage Temperature | -25°C – 70°C (without paper) |
| Storage Humidity | 5% – 95% RH (non‑condensing) |

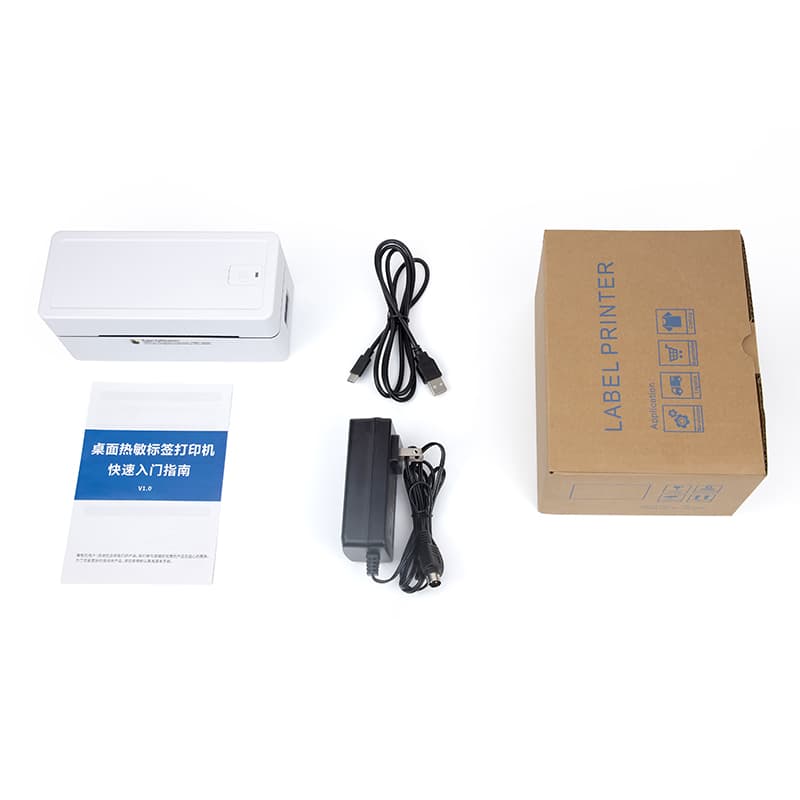

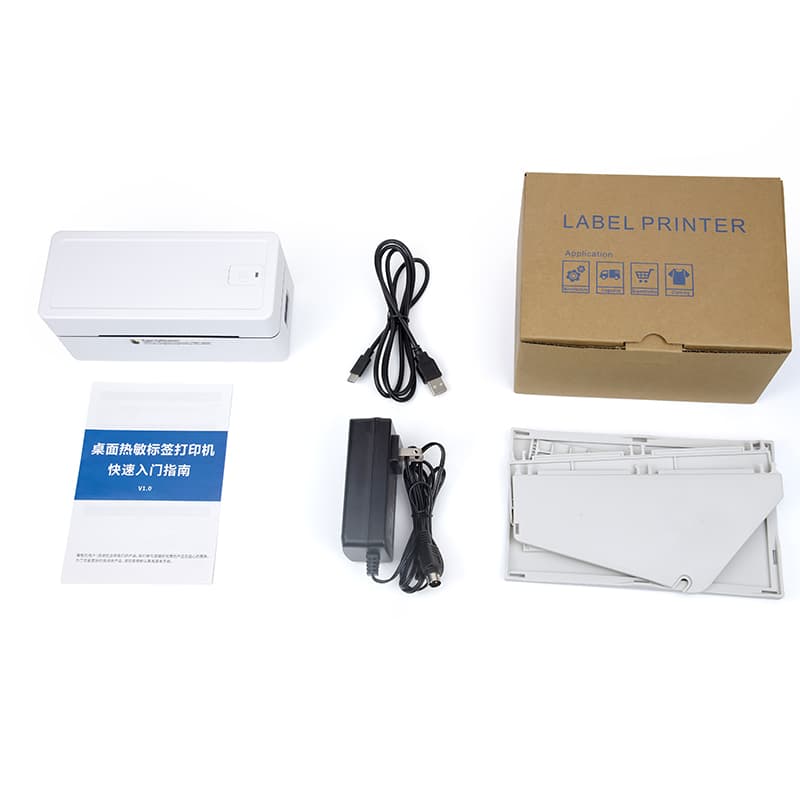

| Package Includes | Printer, power adapter, USB cable, user manual |
| Optional Accessories | External paper stand, Bluetooth/WiFi module |
