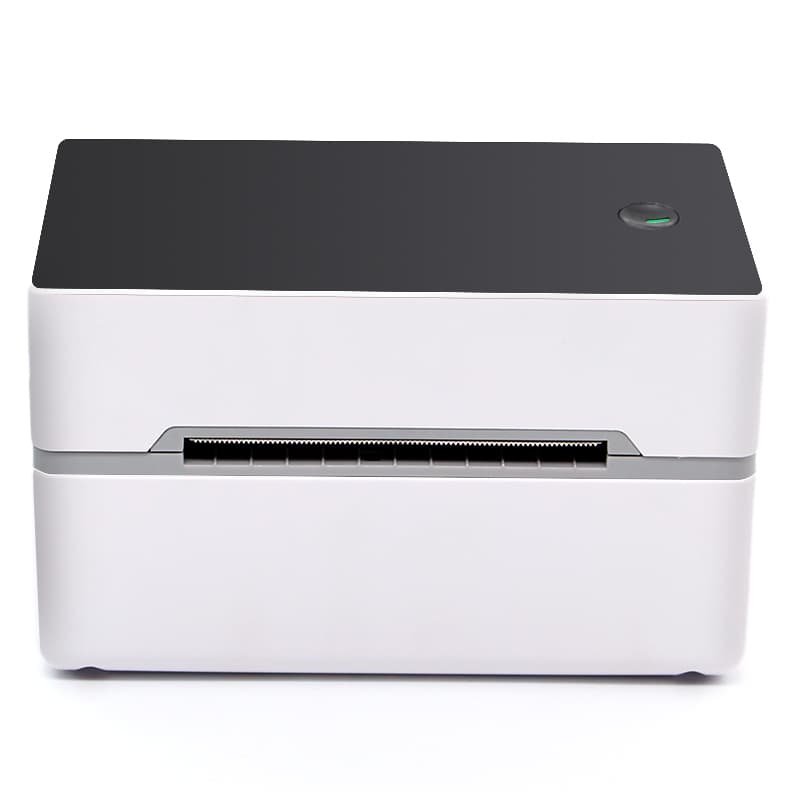

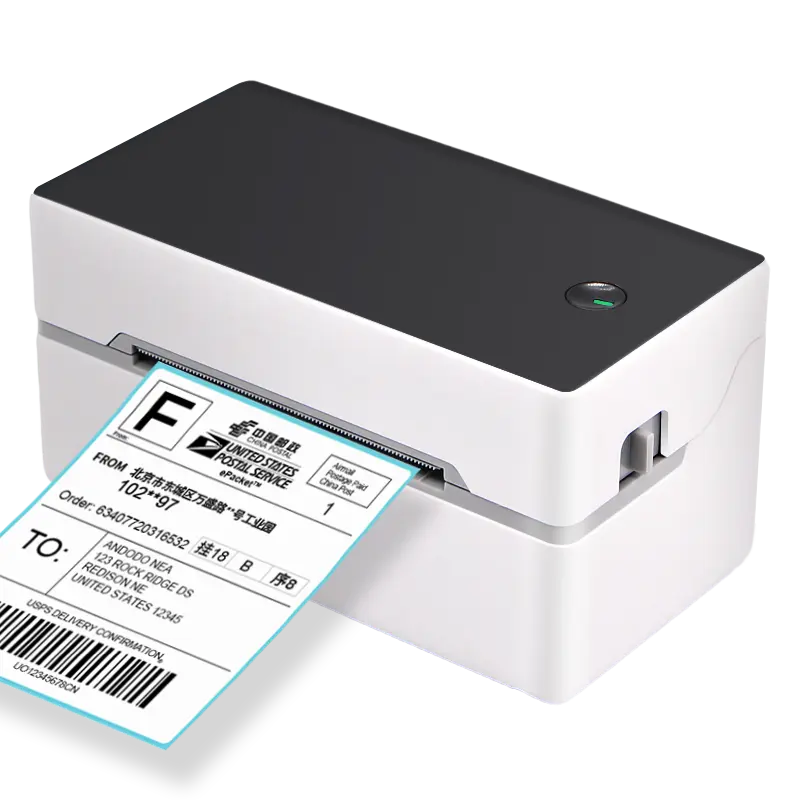

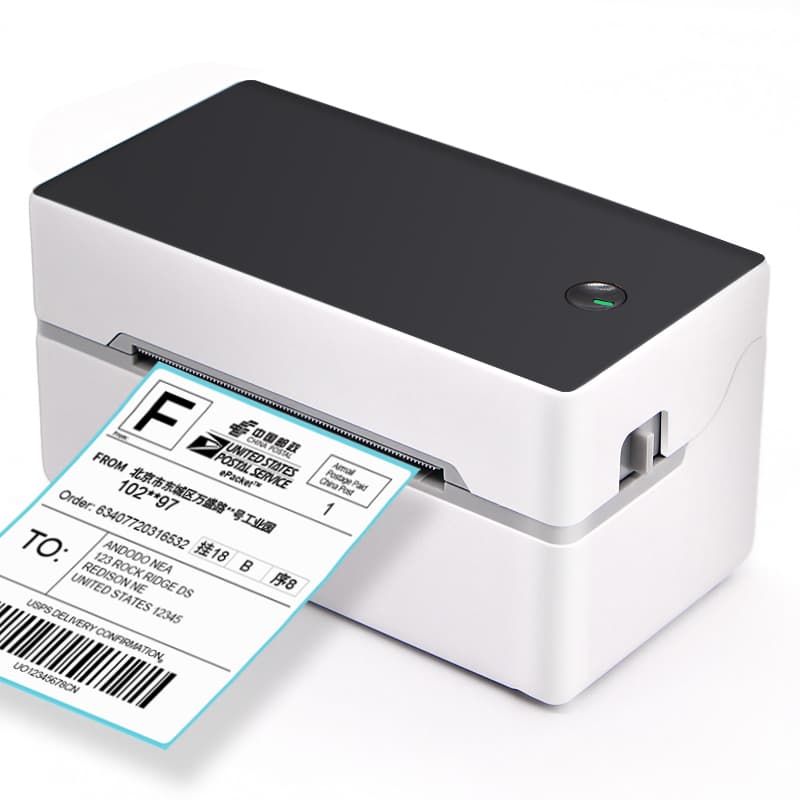

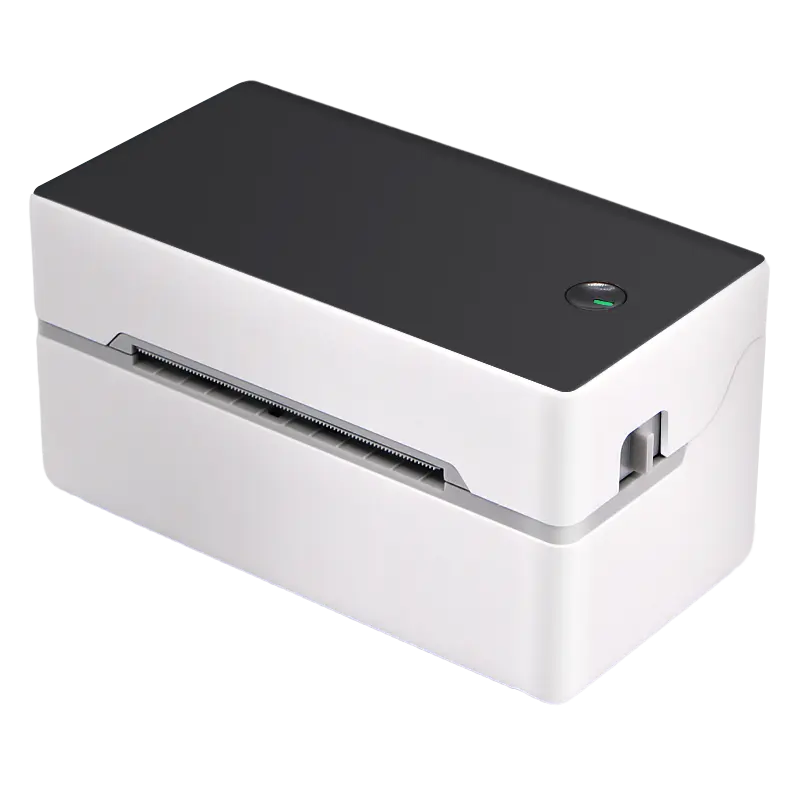

Small Size, Big Performance
Space-saving design with automatic media sensing and paper feed. Compatible with major platforms and printing software. Plug and play simplicity with professional results.

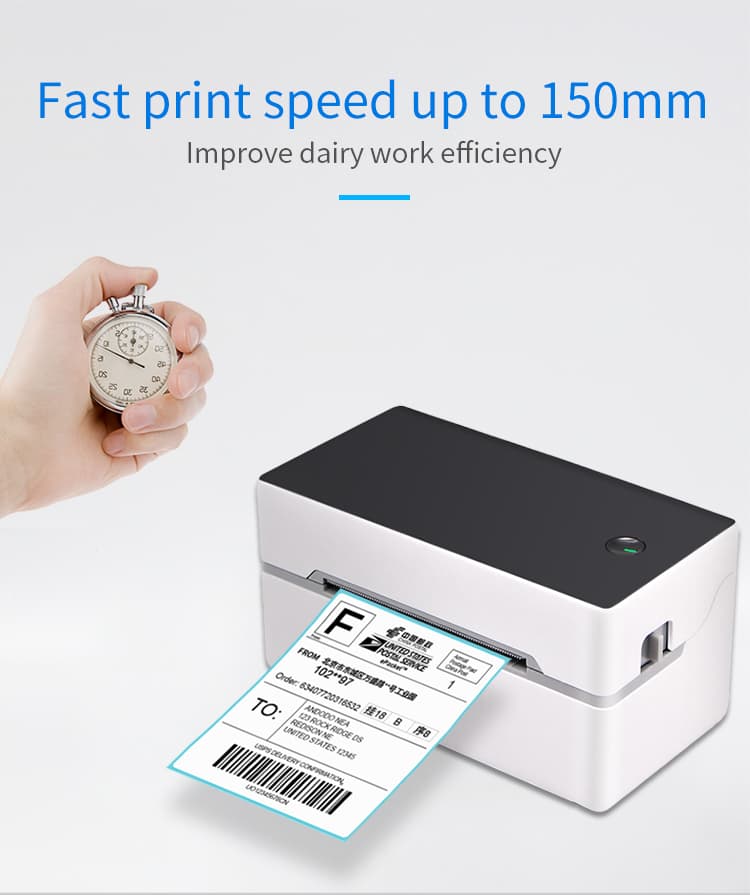

Print Speed – Up to 150mm/s for efficient label production
Fast Processing – Print one label per second for high-volume shipping
Resolution – 203 dpi for crisp text and barcodes

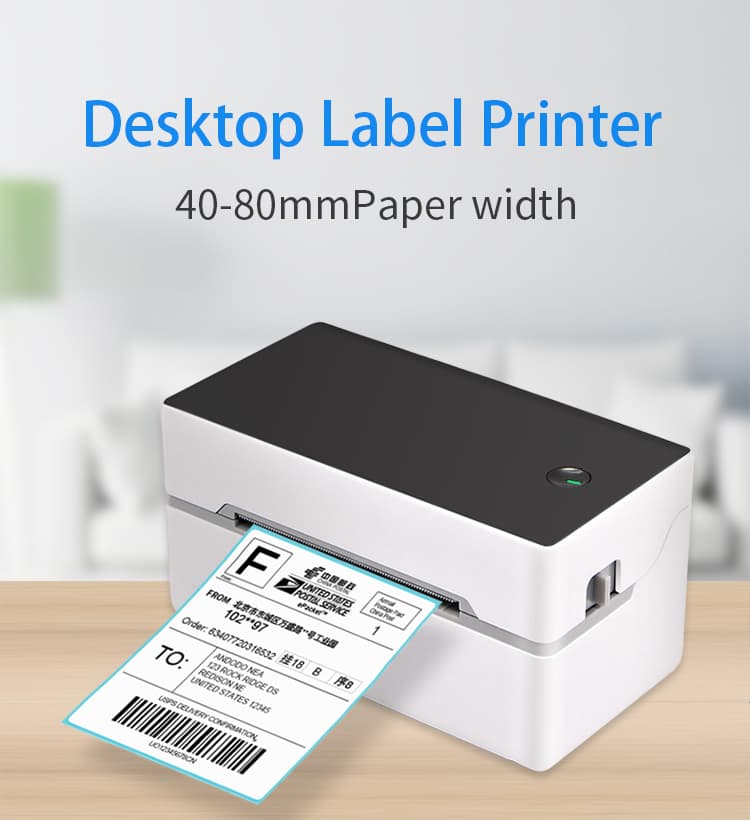

Adjustable Paper Width – 40-80mm, accommodates various label sizes
Paper Types – Thermal labels, continuous paper, folding paper
Paper Thickness – 0.058-0.17mm
Automatic Media Sensing – Detects paper type and position automatically
Auto Feed Paper – Simple drop-in loading, automatically feeds

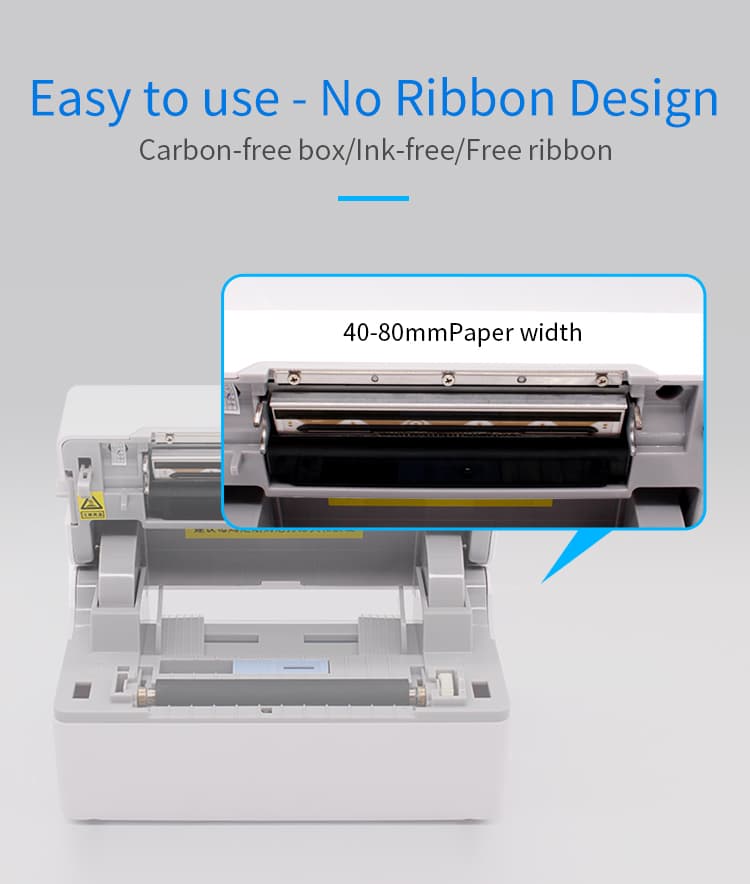

Ribbon-Free Design – No carbon ribbon, no ink, no toner
Direct Thermal Printing – Only thermal paper needed, saves cost and hassle

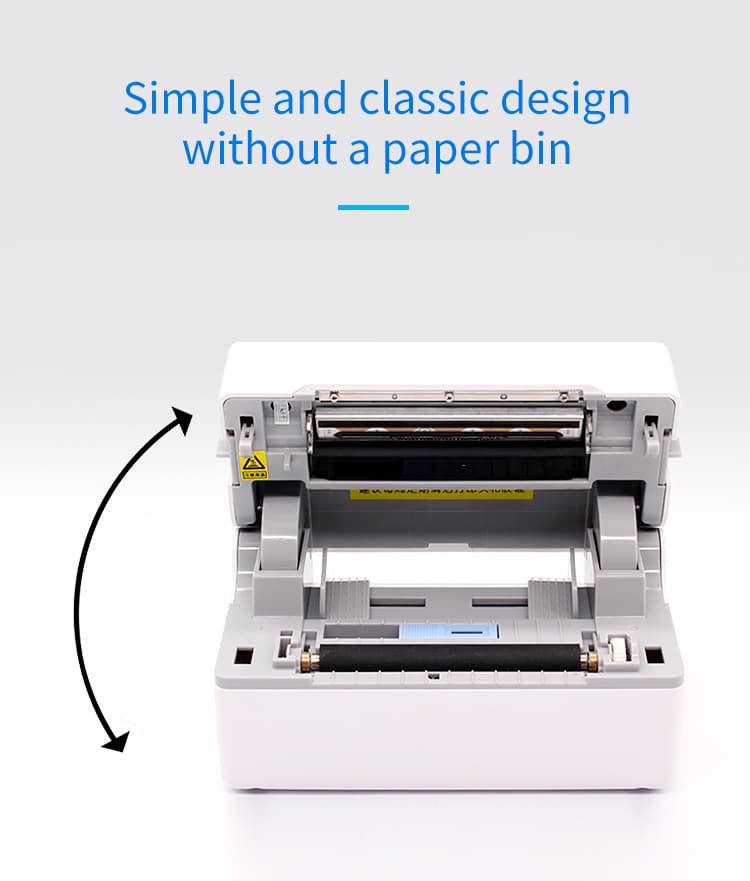

No Paper Bin – Clean, simple design without complex paper compartments
Tiny Footprint – 158 × 81 × 80mm, fits any workspace
Desktop Friendly – Perfect for small offices, retail counters, and home businesses
Lightweight – Easy to move and position
Dual Interface – USB + Bluetooth
Bluetooth Connection – Wireless printing from mobile devices
Plug and Play – Simple setup, no complicated drivers
Compatible Systems – Windows XP/2003/7/8/10
SDK Support – Secondary development information available
Custom Integration – Support for docking with customer software systems via Bluetooth

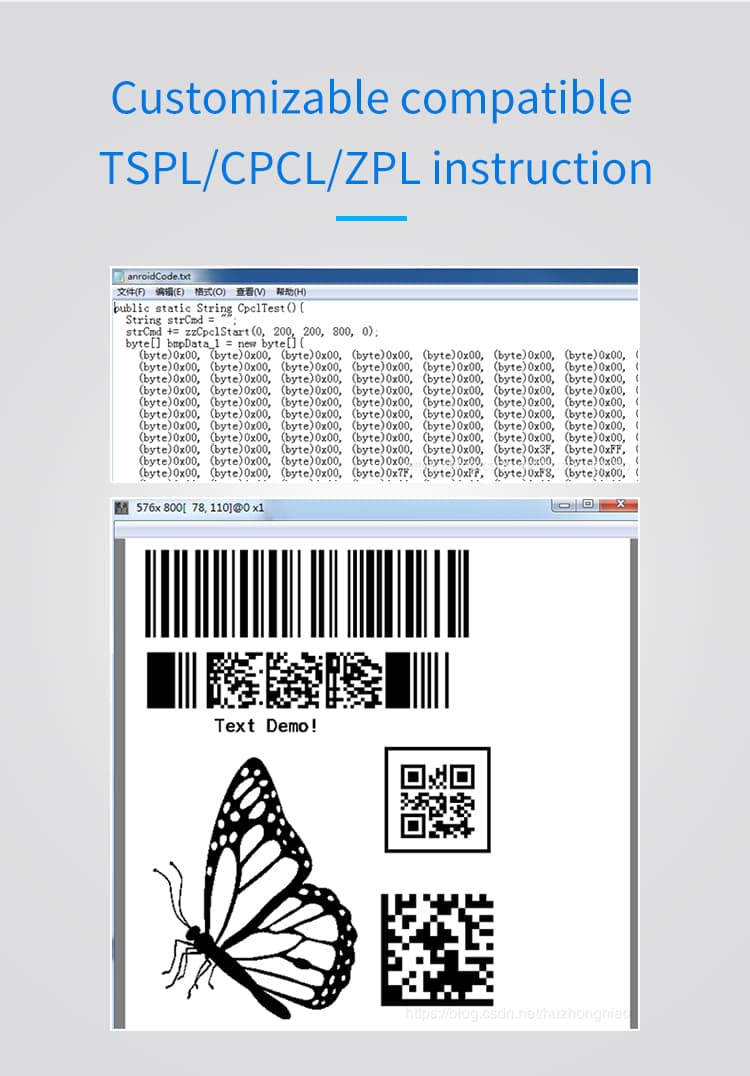

Print Commands – TSPL/CPCL/ZPL (customizable)
1D Barcodes – Code39, Code93, Code128, EAN13, EAN8, UPC-A, UPC-E, ITF, Codabar, and more
2D Barcodes – QR Code, PDF417 (optional)
International Language Support – PC437, Katakana, PC850, PC860, PC863, PC865, WPC1252, PC866, PC852, PC858, and 10+ international character sets
Character Printing – ASCII Font A (12×24), ASCII Font B (9×17), Chinese (24×24)
Character Size – ASCII: 1.25×3.00mm, Chinese: 3.00×3.00mm
Formatting Options – Double width/height printing, adjustable character spacing
Paper Status Detection – Alerts when paper is low or out

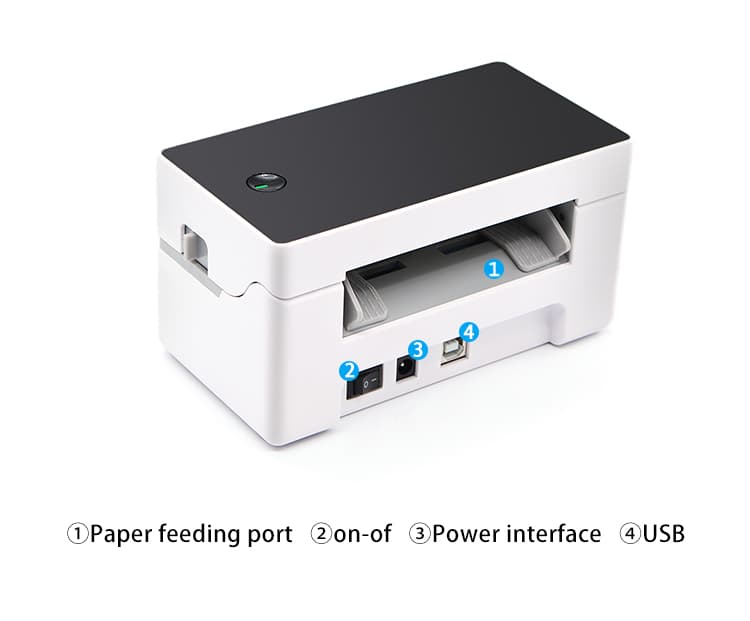

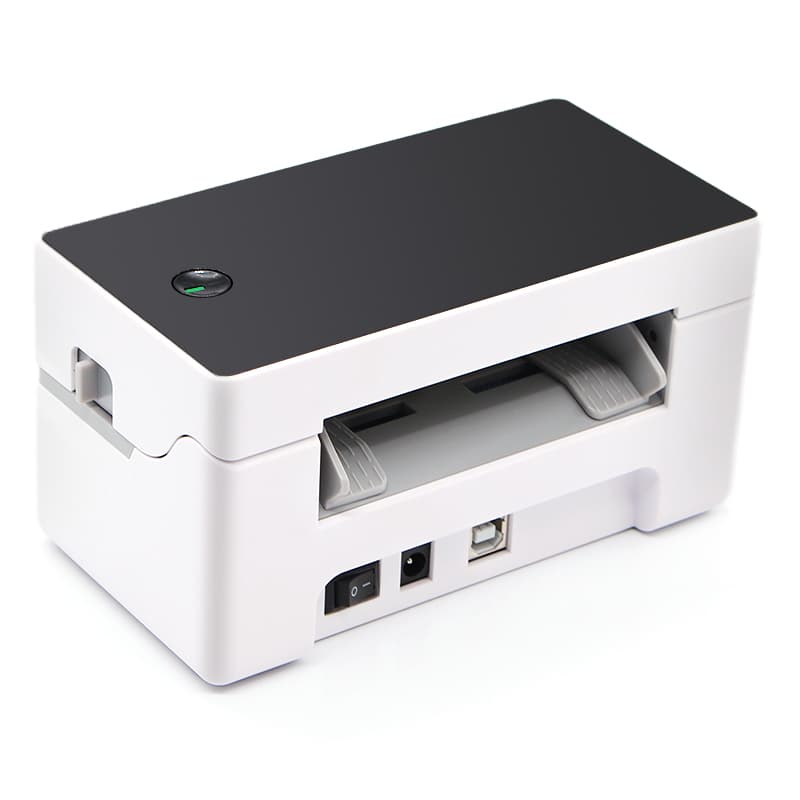

Simple Controls – On/off switch, power interface, USB port
Quick Installation – Open box, connect power, start printing

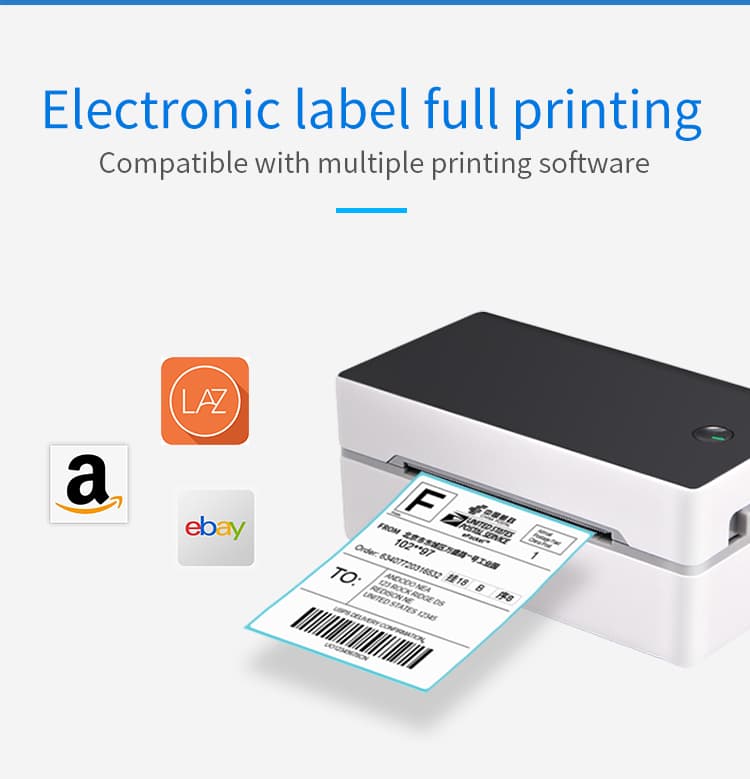

Platform Support – Works with Lazada, eBay, and other e-commerce platforms
Printing Software – Compatible with multiple printing software applications
Driver Support – Windows XP/2003/7/8/10
E-Commerce – Shipping labels, order fulfillment
Logistics – Express waybills, tracking labels
Retail – Price tags, product labels
Warehouse – Inventory labels, bin labels
Small Business – Address labels, barcode printing

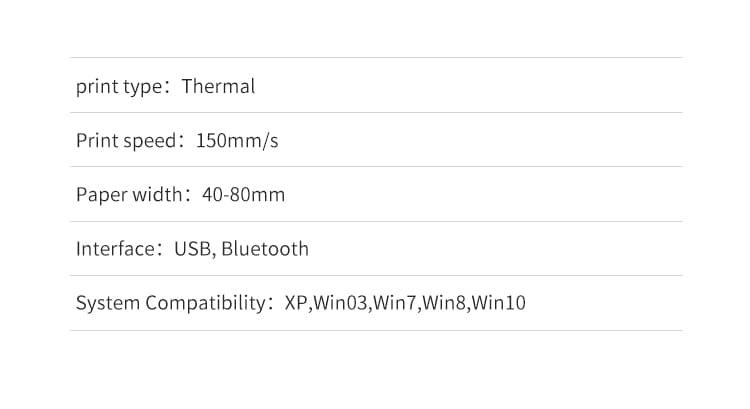

| Parameter | Specification |
|---|---|
| Model | TDL402 |
| Print Type | Line thermal printing |
| Print Speed | 150mm/s |
| Resolution | 203 dpi |
| Paper Width | 40-80 mm (adjustable) |
| Effective Print Width | Up to 80mm |
| Paper Thickness | 0.058 – 0.17mm |
| Paper Types | Thermal labels, continuous paper, folding paper |
| Character Size (ASCII) | Font A: 12×24 (1.25×3.00mm), Font B: 9×17 |
| Chinese Character Size | 24×24 (3.00×3.00mm) |
| 1D Barcodes | Code39, 39C, I25, Code93, ITF25, EAN128, Code128, Codabar, EAN-8, EAN8+2, EAN8+5, EAN-13, EAN13+2, EAN13+5, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPCE+5, MSIC, ITF14, EAN14, CODE11, POST |
| 2D Barcodes | QR Code, PDF417 (optional) |
| International Character Sets | PC437, Katakana, PC850, PC860, PC863, PC865, WPC1252, PC866, PC852, PC858, and 10+ more |
| Interface | USB + Bluetooth |
| Print Commands | TSPL / CPCL (customizable) / ZPL (customizable) |
| Supported Systems | Windows XP, Win2003, Win7, Win8, Win10 |
| Power Adapter Input | 100-240V, 50/60Hz, 1.5A |
| Power Adapter Output | 24V = 2.5A |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 20% – 85% RH |
| Storage Temperature | -20°C to 70°C |
| Storage Humidity | 5% – 95% RH |

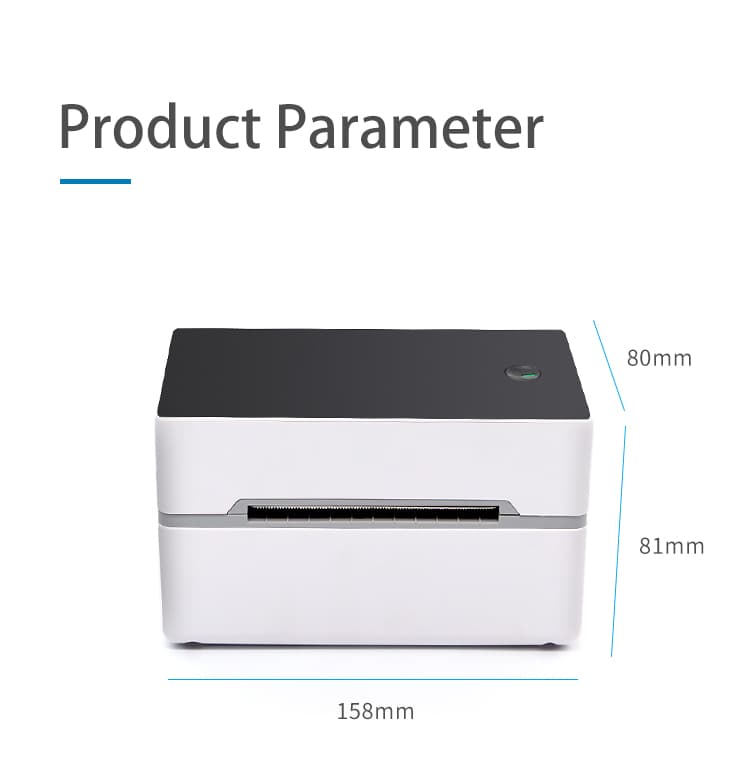

| Dimensions (W×D×H) | 158 × 81 × 80 mm |
| Net Weight | Approx. 0.8 kg |

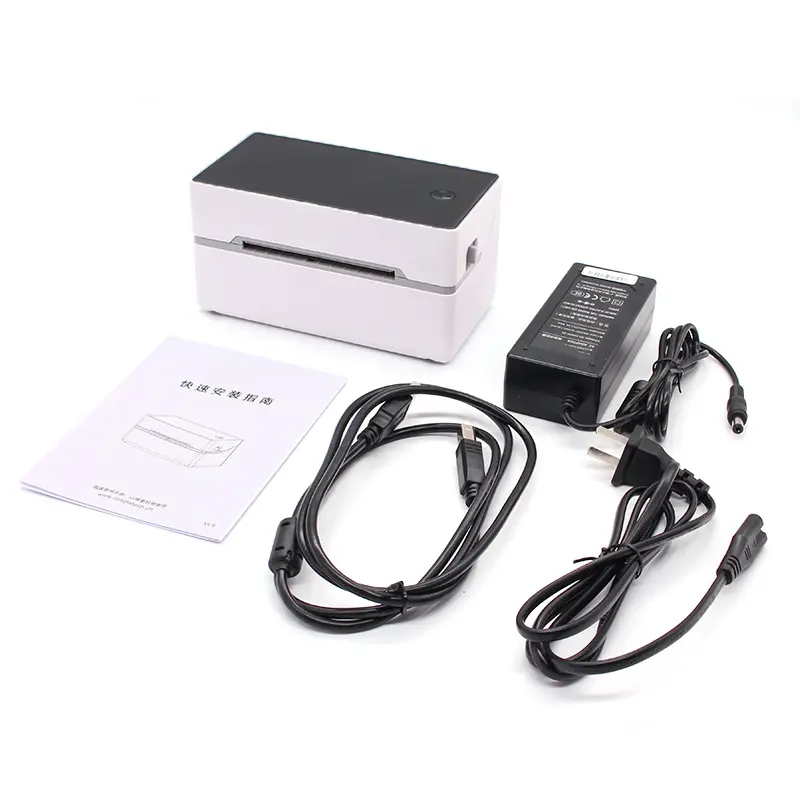

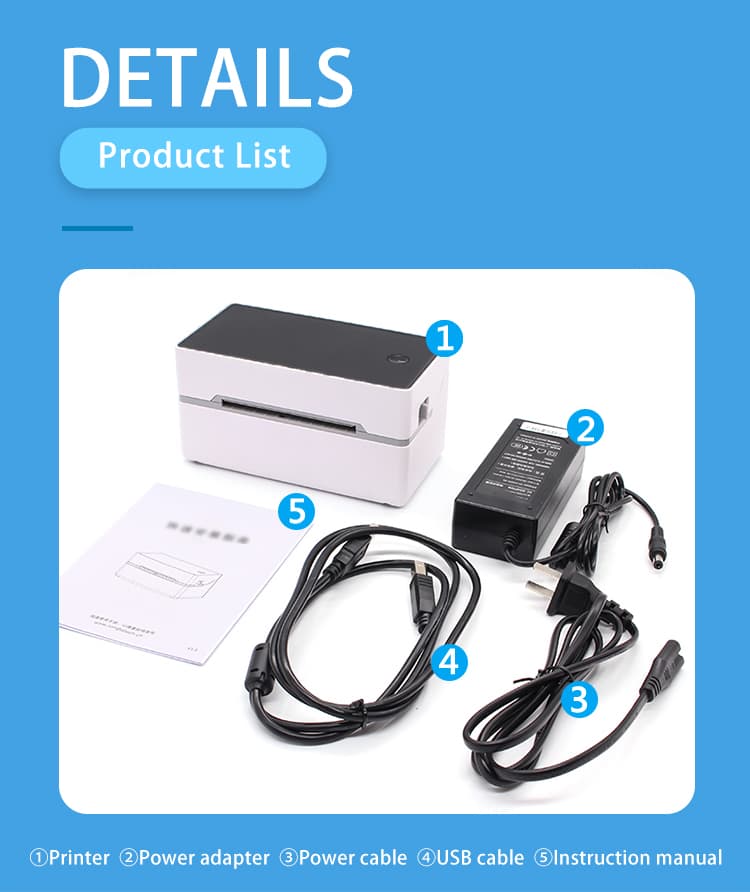

| Package Includes | Printer, power adapter, power cable, USB cable, instruction manual |
