Speed, Reliability, and Versatility – All in One
Print 80mm tickets at lightning speed with crystal‑clear quality. Auto cutter saves time, audible alerts prevent missed orders, and multiple interfaces allow easy integration. Built to handle high‑volume environments.

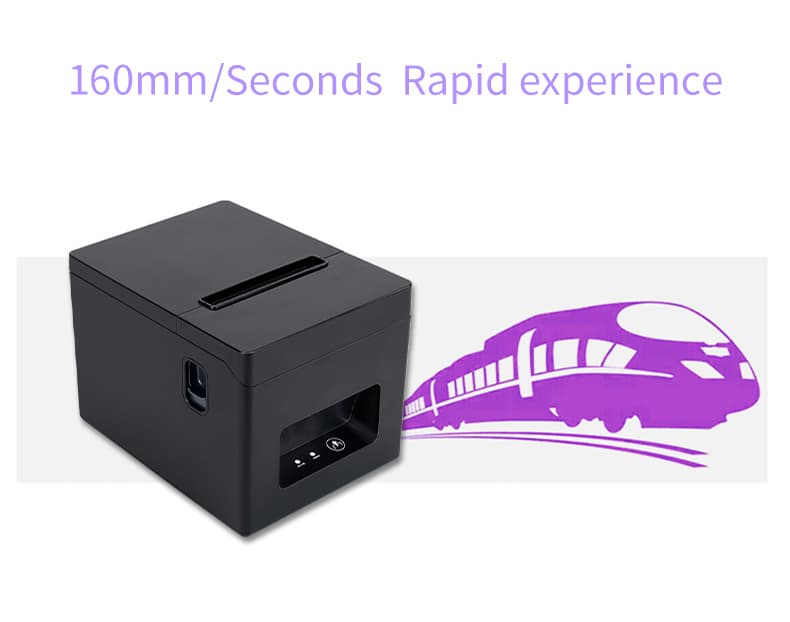

Print Speed – Up to 160mm/s for rapid order processing
Print Width – 72mm (80mm paper width)
High Resolution – 576 dots/line, 8 dots/mm (203dpi) for crisp text and graphics

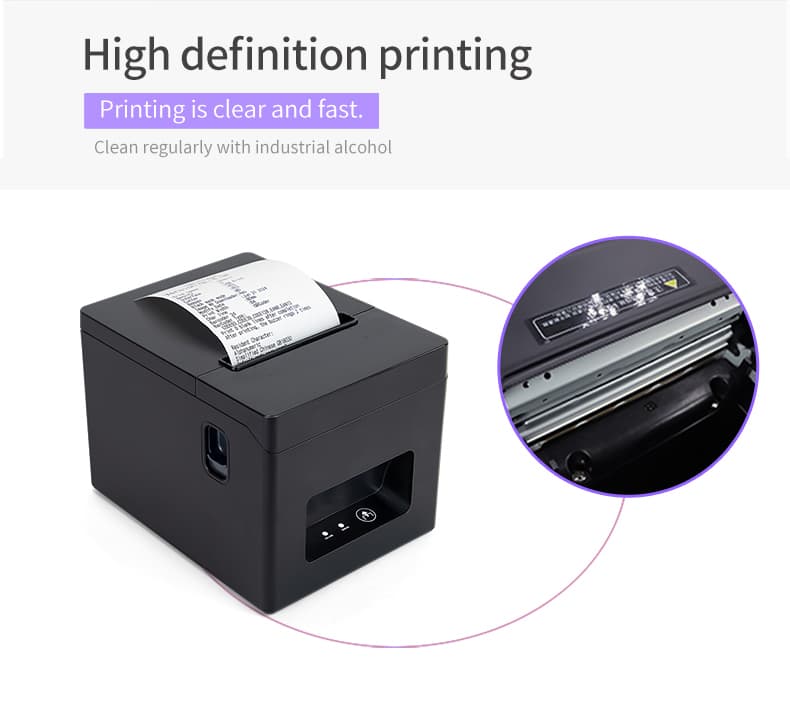

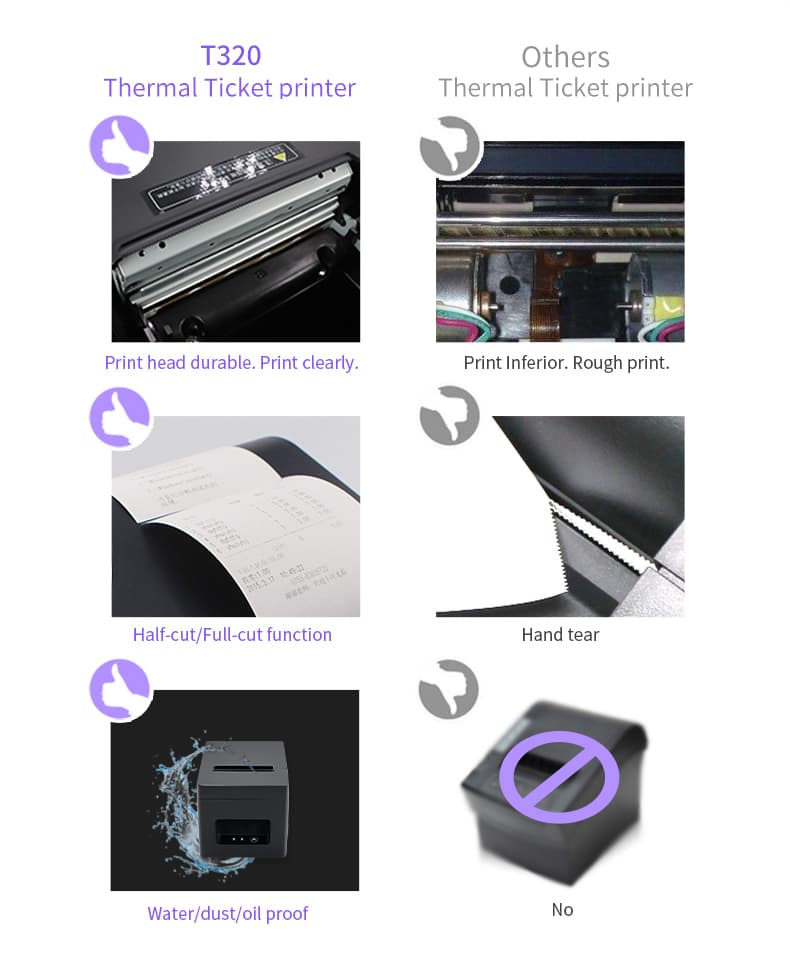

Durable Print Head – Long life with stable performance; easy to clean

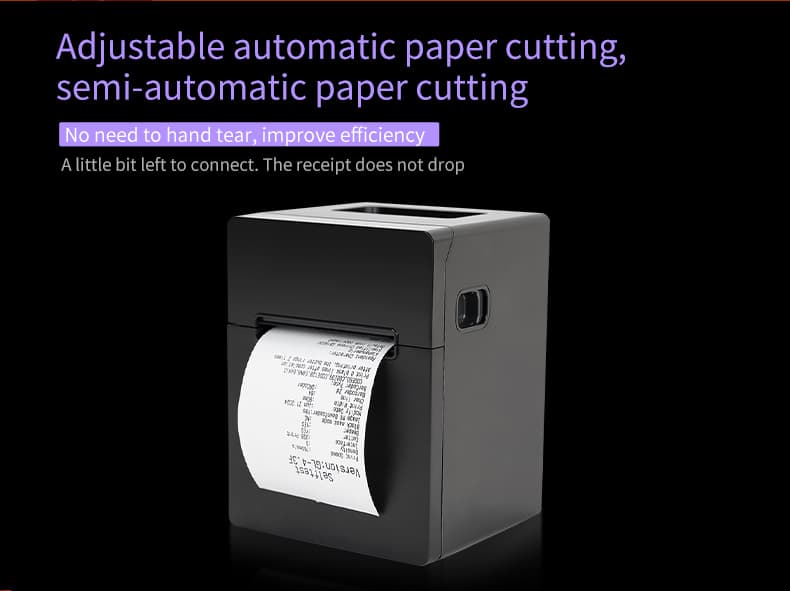

Automatic Paper Cutter – Full cut and half cut functions; no hand tearing required, improves efficiency
Order Reminder Buzzer – Audible alert when new order arrives; paper out and fault warnings
Paper Out Detection – LED indicator and buzzer notify when paper is low or out
Large Paper Bin – Supports up to Ø80mm paper rolls, reduces replacement frequency
Water/Dust/Oil Proof Design – Built to withstand harsh kitchen environments
Printer Mechanism Life – 13 million lines
Print Head Life – 50 km or 10⁸ pulses
MTBF – 3000 hours
Mean Time Between Print Failures – 12 million lines

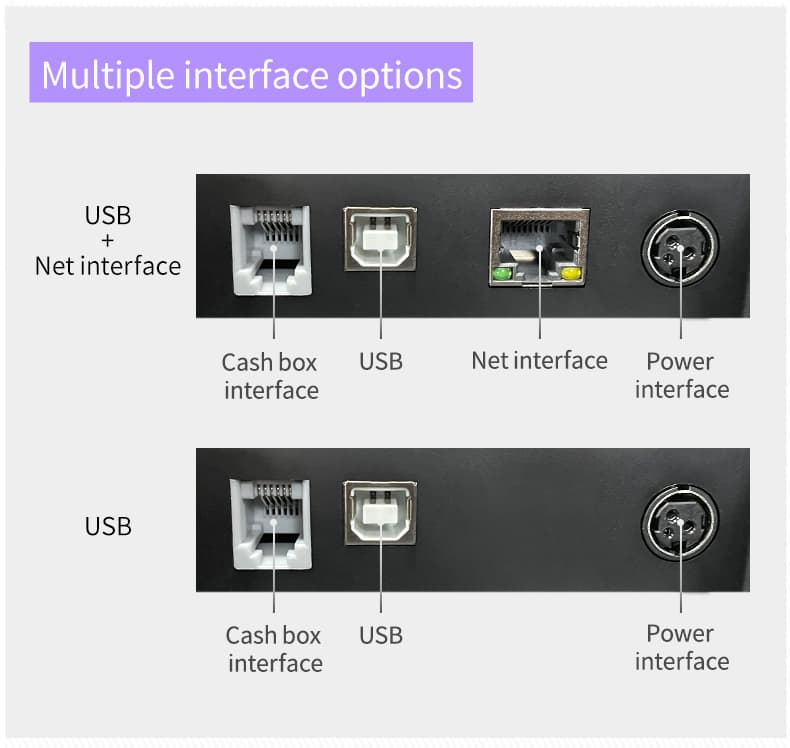

Multiple Interface Options – USB 2.0, LAN (Ethernet), and optional Bluetooth
Cash Drawer Support – Built‑in RJ11 cash drawer interface
Supported OS – Windows XP/7/8/10
Supported Content – English, Chinese, numbers, symbols, charts, curves, pre‑stored icons
1D Barcodes – UPC‑A, UPC‑E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128
2D Barcodes – QR Code
Multi‑Language Printing – Supports Simplified/Traditional Chinese, English, Japanese, Korean, and more
Simple Paper Loading – Drop‑in design, no wrinkles, no jams

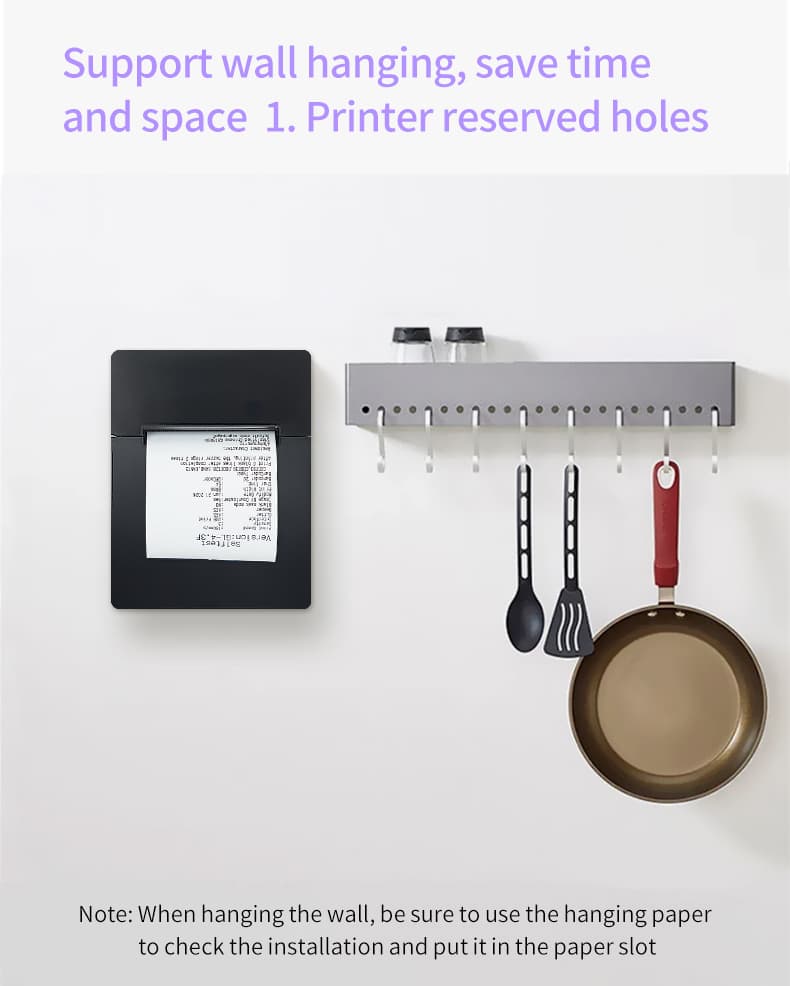

Wall Mountable – Reserved holes for space‑saving installation

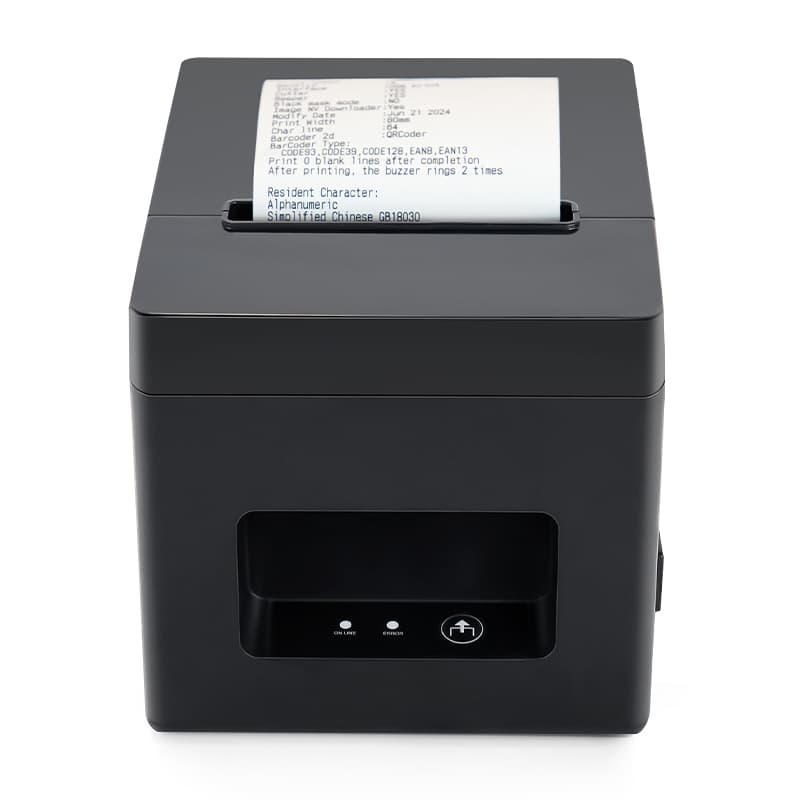

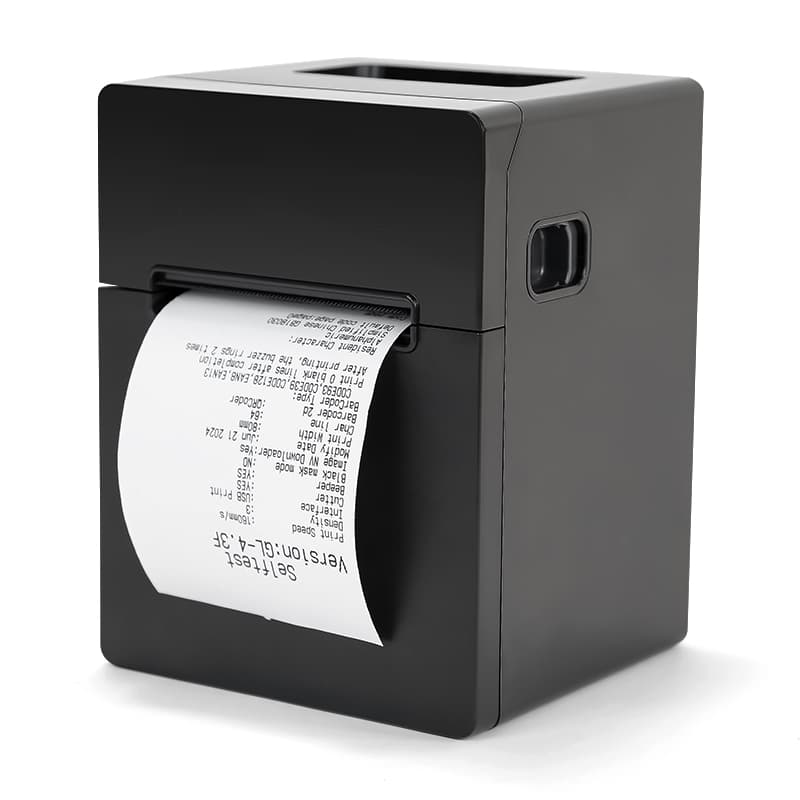

Self‑Test Function – Prints test page with current settings and status

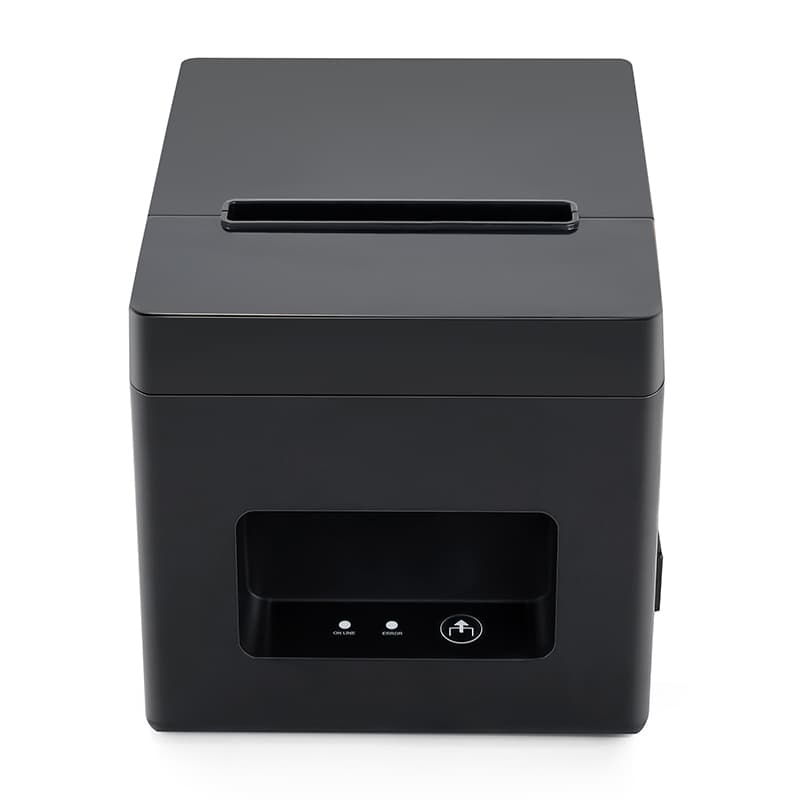

LED Indicators – Power and error lights for easy monitoring
Restaurant kitchens
Retail stores
Supermarkets
Pharmacies
Delivery services
Warehouses

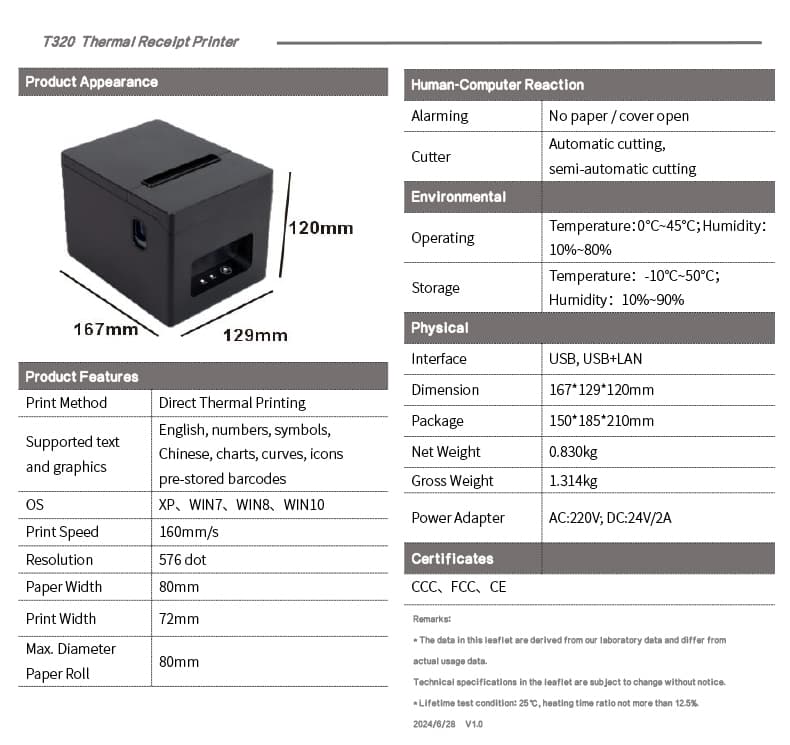

| Parameter | Specification |
|---|---|
| Model | T320 |
| Printing Method | Direct thermal line printing |
| Print Speed | Up to 160mm/s |
| Print Width | 72mm |
| Paper Width | 80mm (79.5mm ± 0.5mm) |
| Max Roll Diameter | 80mm |
| Paper Thickness | 0.048 – 0.08mm |
| Resolution | 576 dots/line, 8 dots/mm (203dpi) |
| Interface | USB 2.0, LAN (Ethernet), optional Bluetooth |
| Bluetooth Range | ≥30m (open area) |
| Command Set | ESC/POS compatible |
| Fonts | Font A: 12×24, Font B: 9×17, Chinese: 24×24 |
| Character Size | Font A: 1.5×3.00mm, Font B: 1.13×2.13mm, Chinese: 3.00×3.00mm |
| Characters Per Line | Font A: 32, Font B: 42, Chinese: 16 |
| Character Sets | Simplified Chinese, Traditional Chinese, English, Japanese, Korean, etc. |
| 1D Barcodes | UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128 |
| 2D Barcodes | QR Code |
| Cutter | Automatic full cut / half cut |
| Cash Drawer Interface | RJ11 (24V/1A) |
| Power Supply | DC 24V/2A |
| Adapter Input | AC 100‑240V, 50/60Hz |
| Dimensions (W×D×H) | 167 × 129 × 120 mm |
| Net Weight | 0.83 kg |
| Gross Weight | 1.314 kg |
| Package Dimensions | 150 × 185 × 210 mm |
| Printer Mechanism Life | 13 million lines |
| Print Head Life | 50 km or 10⁸ pulses |
| MTBF | 3000 hours |
| Operating Temperature | 0 – 50°C |
| Operating Humidity | 20% – 85% RH (non‑condensing) |
| Storage Temperature | -25 – 70°C (without paper) |
| Storage Humidity | 5% – 95% RH (non‑condensing) |
| Certifications | CCC, FCC, CE |
| Package Includes | Printer, power adapter, data cable (depending on version), test paper roll, user manual |
