Speed, Durability, and Smart Connectivity in One
Print orders at record speed, never miss a ticket with audible alerts, and connect seamlessly via USB or Bluetooth. The 80E is engineered to withstand grease, moisture, and pests – the perfect kitchen companion.
Print Speed – Up to 250mm/s for rapid order processing
ROHM Print Head – Japan ROHM technology (KD2003-G0GB01C) ensures stable, durable performance
High Resolution – 640 dots/line, 8 dots/mm for crisp text and graphics
Waterproof & Dustproof – Full machine sealing + circuit board three‑proof coating protects against water splashes and dust accumulation
Oil‑Repellent Surface – Modified ABS oleophobic material, stains wipe off easily
Pest Control Design – Multi‑dimensional protection against cockroaches and other pests
Full/Half Cut Function – No hand tearing required, improves efficiency
Reliable Cutting – Precision mechanism ensures clean cuts every time
Dual Interface – USB-B + Bluetooth wireless module
Bluetooth Range – ≥30m (open area), stable connection
Cash Drawer Support – Built-in RJ11 interface (24V/1A)
5‑Level Adjustable Buzzer Volume – Adapt to different noise environments
LED Indicators – Power, signal, and warning lights for status monitoring
Paper Out Detection – Buzzer and flashing light alert when paper is low or out
Large Paper Bin – Supports up to Φ80mm paper rolls, reduces replacement frequency
Extensive Language Compatibility – Supports Thai, Arabic, Russian, Vietnamese, Simplified/Traditional Chinese, English, Japanese, Korean, and more via CodePage and UTF-8
Right-to-Left Layout – Perfect for Arabic and other RTL languages
Bitmap & Curve Printing – Print custom graphics, charts, and ECG waveforms
1D Barcodes – UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128
2D Barcodes – QR Code
Logo & Image Printing – Custom branding and promotions
Delivery Platforms –and similar
Cashier Software – POSPAL
Printing Software – Generic printing utilities
Desktop or Wall Mount – Compact size (133×163×115mm) with reserved holes for wall hanging

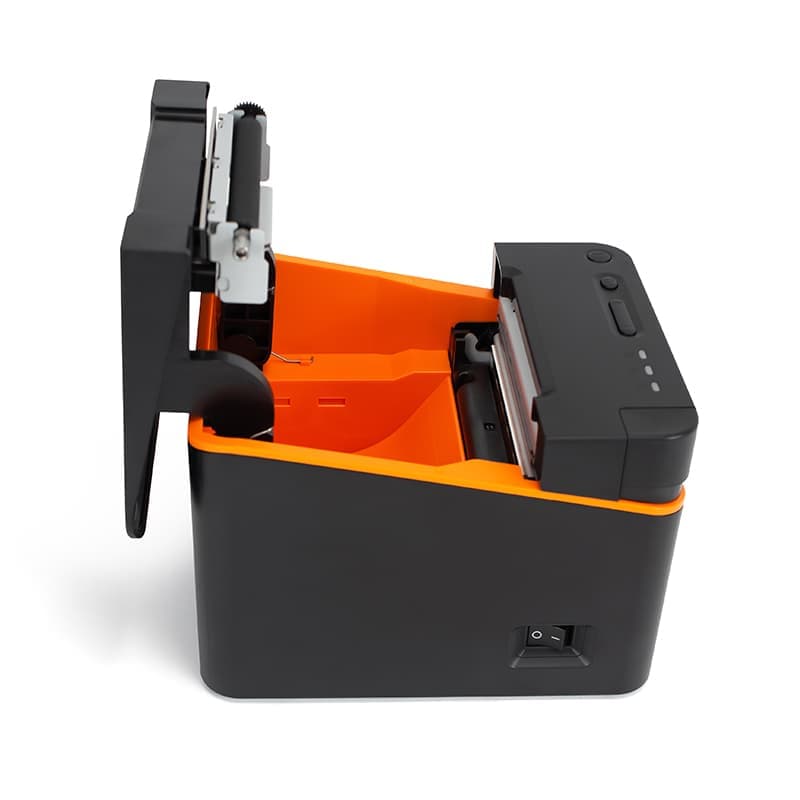

Easy Paper Loading – Simple drop-in design, no wrinkles, no jams
Print Head Life – 50 km or 108 pulses
Mechanical Life – 13 million print lines
MTBF – 3000 hours
Environmental Protection – Overcurrent, overvoltage, electrostatic, and electromagnetic interference protection
| Parameter | Specification |
|---|---|
| Model | 80E |
| Printing Method | Direct thermal line printing |
| Print Speed | Up to 250mm/s |
| Print Width | 80mm |
| Paper Width | 80mm (79mm ± 0.5mm) |
| Max Roll Diameter | ≤80mm |
| Paper Thickness | 0.048 – 0.08mm |
| Resolution | 640 dots/line, 8 dots/mm |
| Interface | USB-B, Bluetooth (wireless module) |
| Bluetooth Range | ≥30m (open area) |
| Command Set | ESC/POS compatible |
| Fonts | Font A: 12×24, Font B: 9×17, Chinese: 24×24 |
| Character Size | Font A: 1.25×3.00mm, Font B: 0.88×2.13mm, Chinese: 3.00×3.00mm |
| Characters Per Line | Font A: 35, Font B: 46, Chinese: 17 |
| Character Type | Simplified/Traditional Chinese, English, Japanese, Korean |
| 1D Barcodes | UPC-A, UPC-E, EAN13, EAN8, CODE39, ITF, CODABAR, CODE93, CODE128 |
| 2D Barcodes | QR Code |
| Power Supply | DC 24V/2.5A |
| Adapter Input | AC 110V/220V, 50/60Hz |
| Cash Drawer Interface | RJ11 (24V/1A) |
| Dimensions | 133 × 163 × 115 mm (W×D×H) |
| Gross Weight | 902g |
| Print Head Life | 50 km or 108 pulses |
| Mechanical Life | 13 million print lines |
| MTBF | 3000 hours |
| Operating Temperature | 0 – 50°C |
| Storage Temperature | -25 – 70°C (without paper) |
| Operating Humidity | 20% – 85% RH (non-condensing) |
| Storage Humidity | 5% – 95% RH (non-condensing) |
| Certifications | CE, RoHS (assumed) |
| Package Includes | 1 × 80E printer, 1 × power adapter, 1 × USB cable, 1 × quick start guide |
