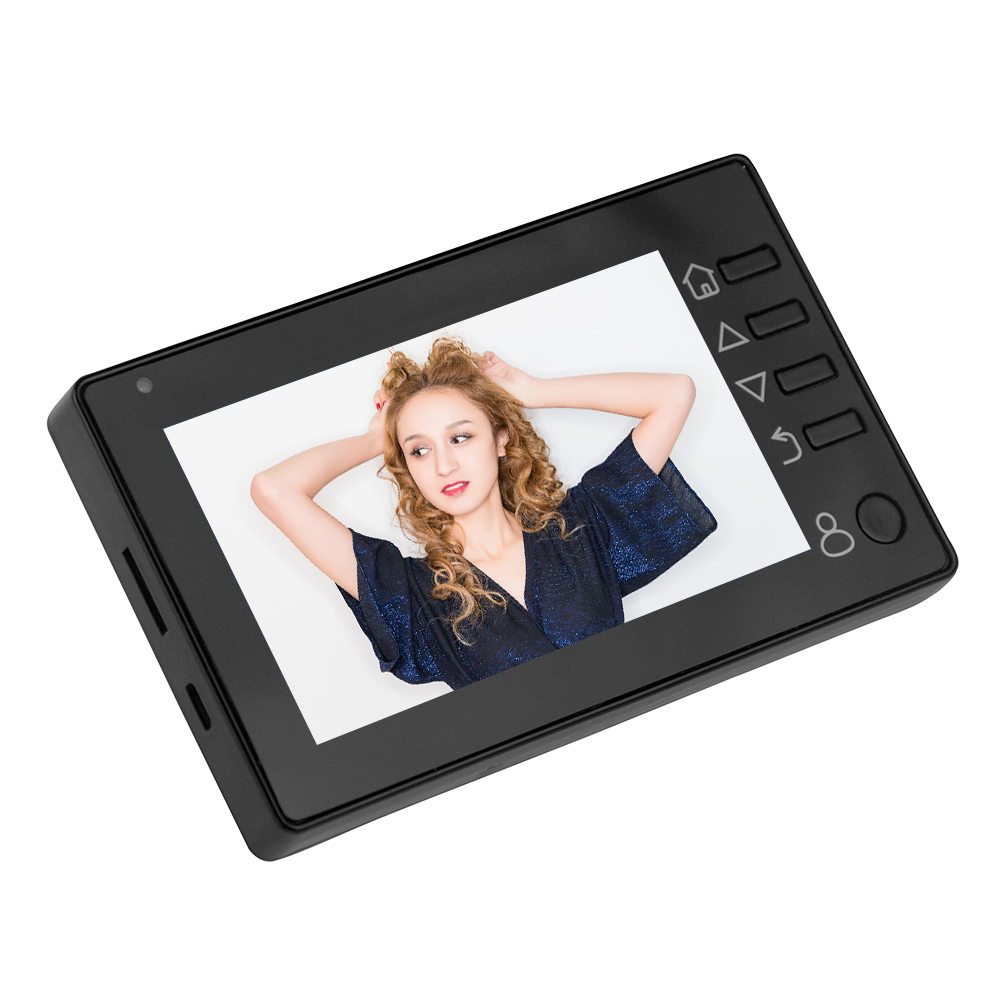

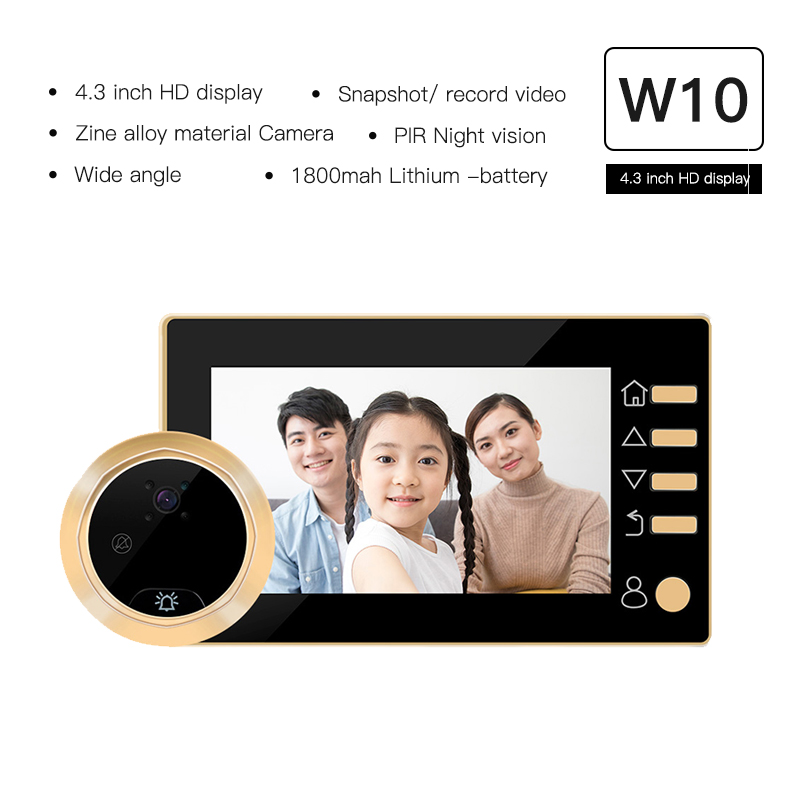

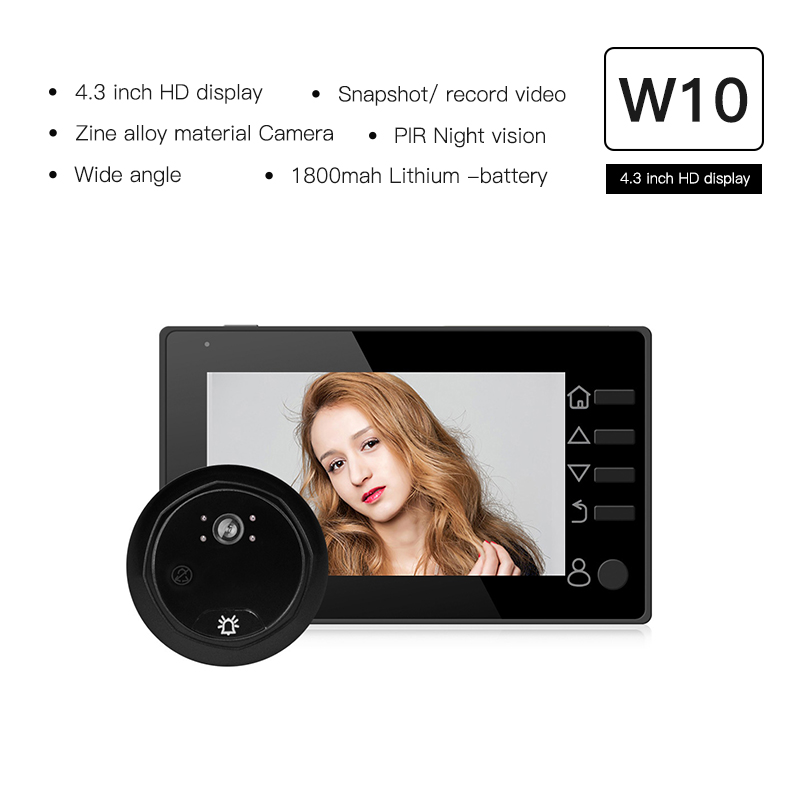

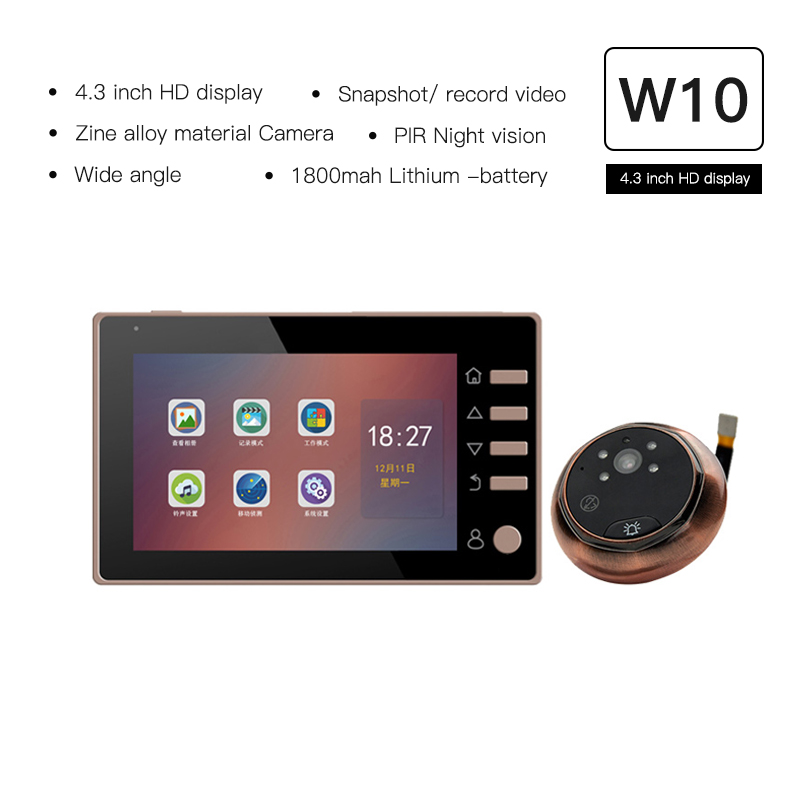

The 4.3-inch smart door viewer features a rechargeable lithium battery and three intelligent modes: At Home, Away, and Do Not Disturb. Automatically captures photos/videos when visitors press the doorbell, with TF card storage. Large screen displays outdoor environment at switch press, supporting manual photo capture. Ideal for home security.
enquiry
a)At home mode: When the visitor presses the doorbell button , the screen lights up, and automatic snapshot/ record video.
b)Away from home mode: When the visitor presses the doorbell button outside the door, the machine rings, the screen does not open. and the camera automatically stores the snapshot/ record video.
c)Do Not Disturb Mode: When the visitor presses the doorbell button outside the door, the machine will not ring, the screen will not be on, will snapshot/ record video
d)The machine support snapshot function, the photo will be save in TF Card. user can search the photo in the menu or use a card reader to browse on the computer
e)When user press the switch, the screen will light up and show the outdoor environment
f)When the screen light up. user press the switch, the machine will take a photo and storage in TF Card

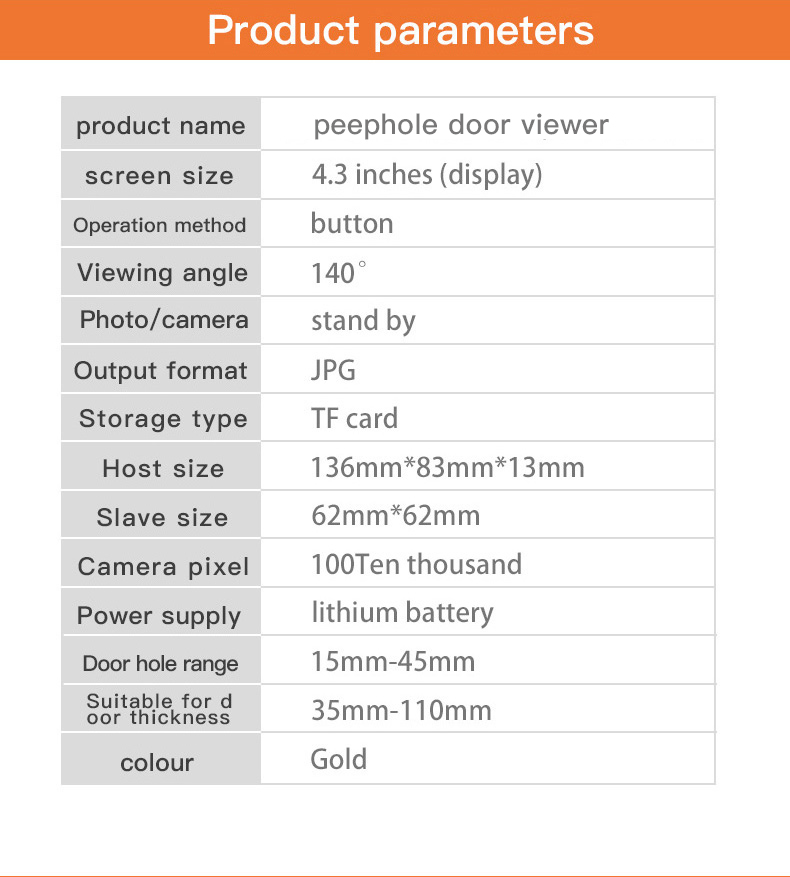

| model
parameter |
YB-W10 | |

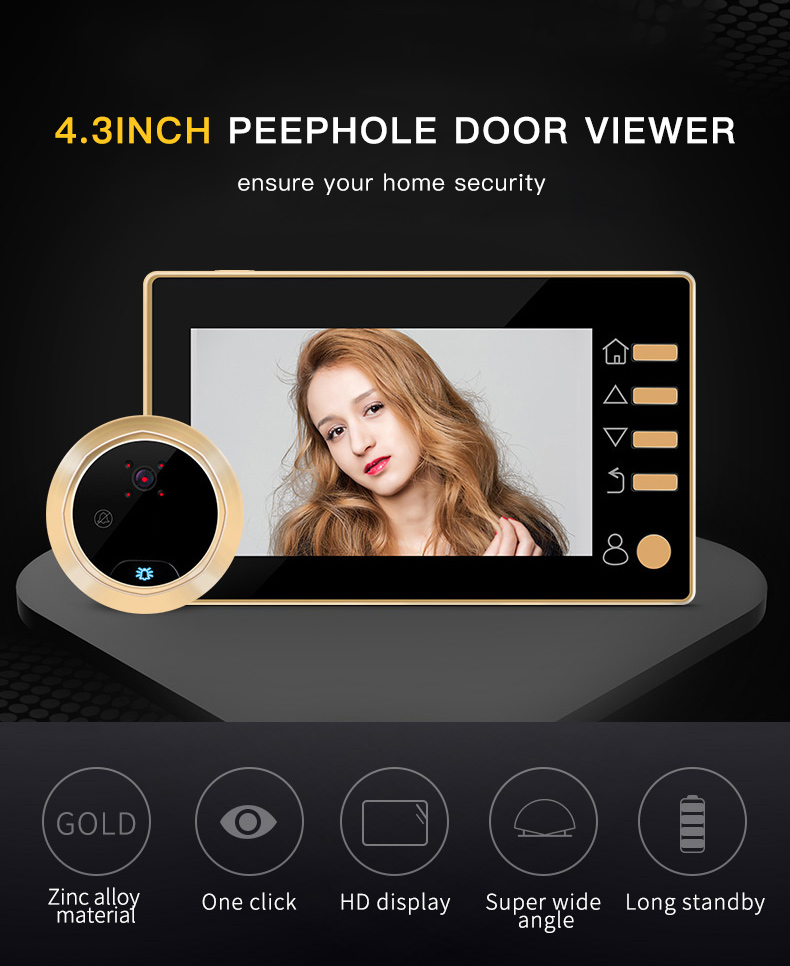

| 4.3 inch Peephole door viewer | ||
| Camera module | Image Sensor | 1/4" CMOS（0308） |
| Effective Pixels | 1280(H)×960(V) | |
| Minimum illumination | 0.5Lux/F2.0 color) | |
| 0.02Lux/F2.0 (black and white) | ||
| White balance | Automatically track white balance | |
| Gain control | automatic | |
| Signal to noise ratio | dBGreater than 50dB | |
| BLC | open | |
| Wide dynamic | YES | |
| Electronic shutter | 1/4-1/10,000s | |
| Day and night mode | Filter color to black | |
| focal length | 2.4mm | |
| Horizontal viewing angle | 90 degrees | |
| Aperture number | F2.0 | |
| Infrared night vision light | 3, 3MM, flat, angle 90, 850 infrared | |
| Function | Automatic shut-down | Off, 10 seconds, 20 seconds, 30 seconds |
| Language | Chinese, English, French, German, Spanish, Portuguese, Italian, Russian, Hebrew, etc. (the built-in language of each version may be different, other languages can be customized) | |
| Motion Detection | not support | |
| On-screen display settings | On / off | |
| Recording time | 10 seconds, 20 seconds, 30 seconds | |
| Number of photos | One, two, three | |
| format | Support for formatting TF cards | |
| Light source frequency | 50HZ/60HZ | |
| Power failure memory | stand by | |
| default setting | stand by | |
| Ringtone settings | Built-in 4 ringtones | |
| Volume setting | 5-level volume optional | |
| Parameter | main chip | JR |
| Indoor unit material | ABS engineering plastics | |

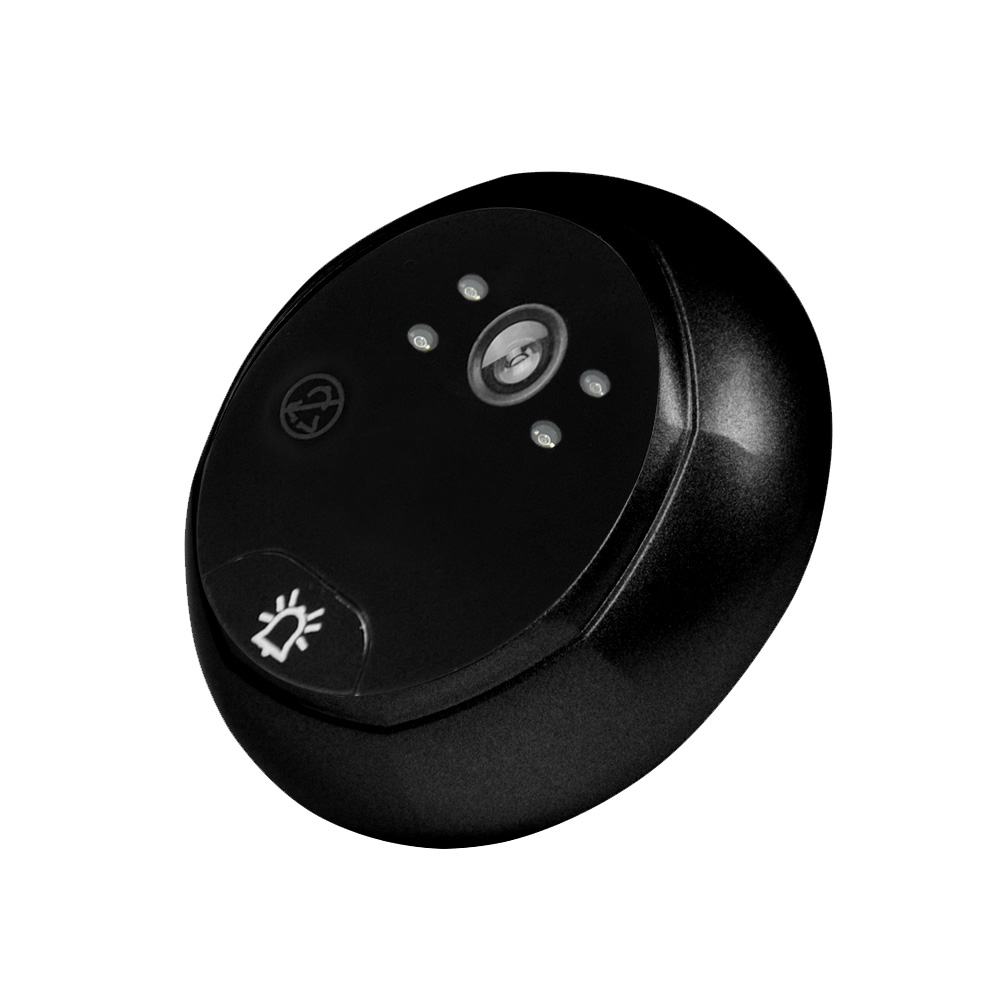

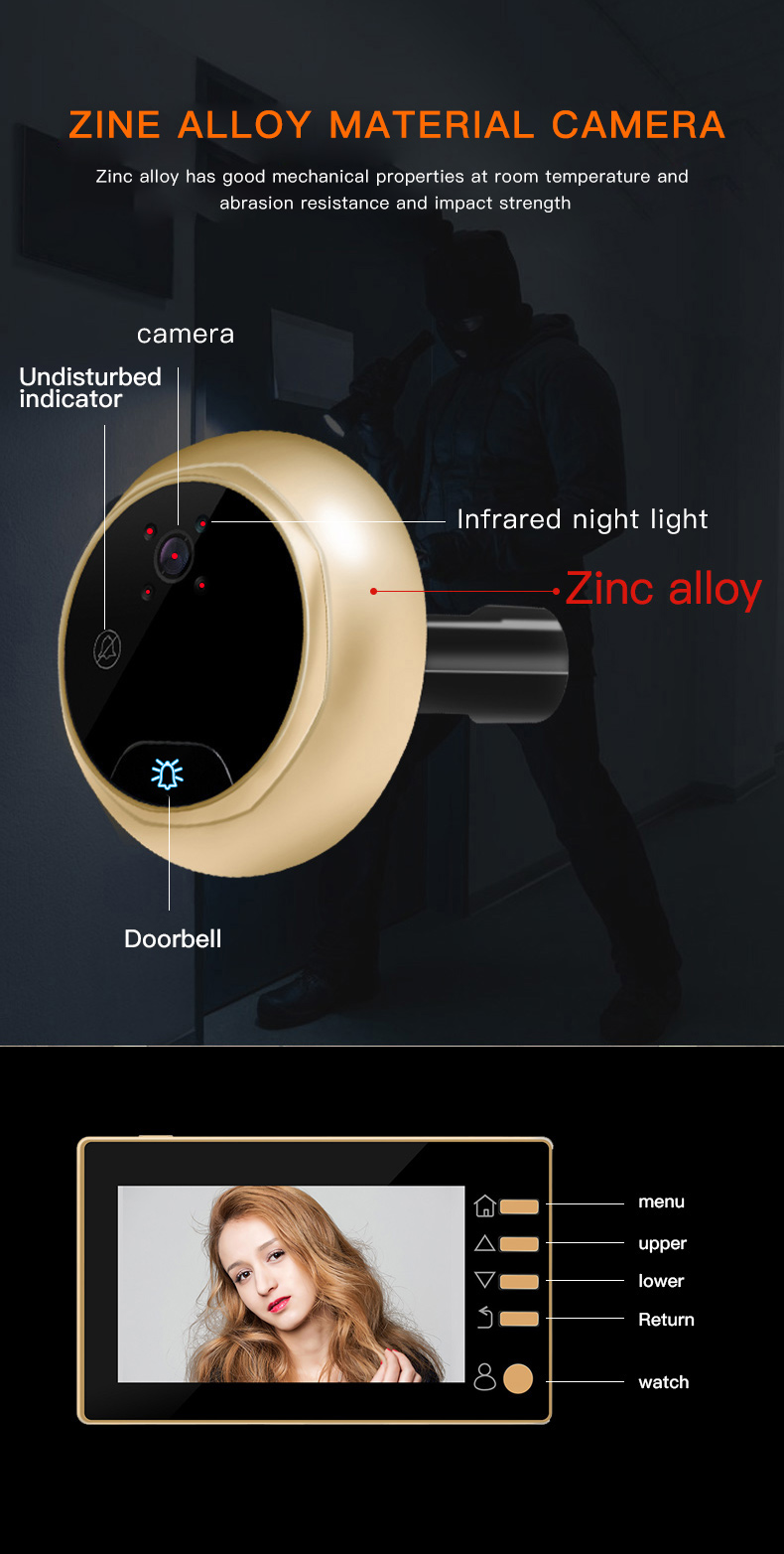

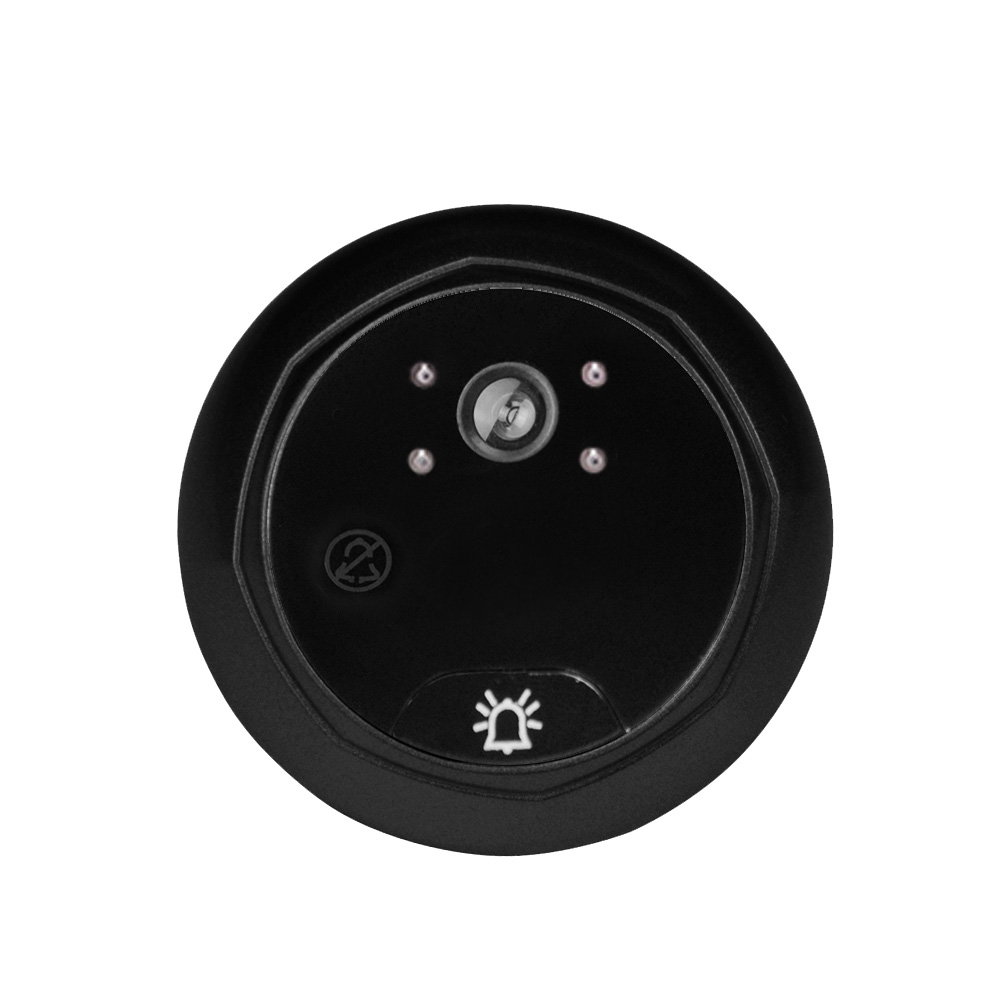

| Outdoor machine material | Zinc alloy | |
| Infrared body sensor | PIR induction | |
| PIR sensing mode | 9.5MM Fresnel lens | |

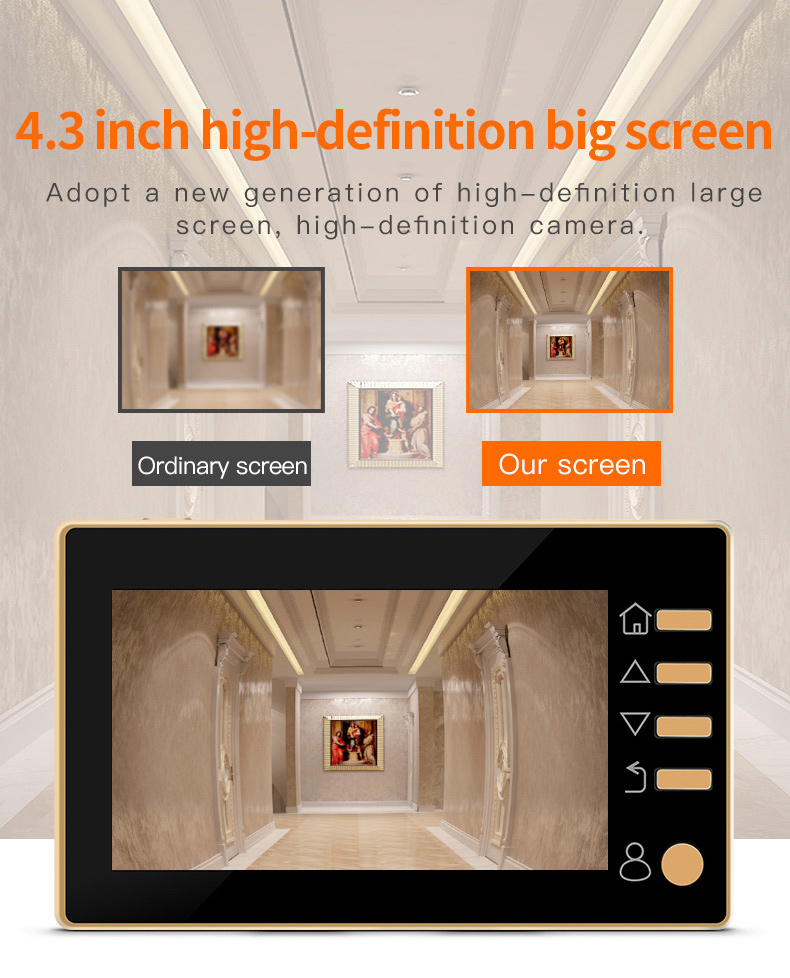

| LCD screen type | 4.3 | |
| LCD screen resolution | 480*272 | |
| TF card | Maximum support 32G | |
| Maximum image size | 1280×960 | |
| Frame rate | 50HZ: 25 frames (1280×720P) | |
| Video compression | M-JPEG | |
| Audio compression | G.711 / 16kbps | |
| stand-by current | 120UA | |
| Working temperature and humidity | -30°C-65°C (outdoor) / -10°C-50°C (indoor) Humidity less than 90% | |
| Protection level | IP55 | |
| Installation method | Screw hanging board | |
| Applicable door | 30~110mm | |
| Suitable for cat eyes | 15~50MM | |
| weight | Net weight 0.25Kg / gross weight 0.5Kg | |
| Package dimensions | 190*117*76mm | |
| Host color | Gold | |
| Accessories | Screw | M3*30 2/ M3*50 2/ M3*60 2/ M3*85 2 |
| Mounting plate | 72mm*52mm*6.5mm | |
| TF card | Capacity 8G (optional) | |
| USB charging cable | Charging and data transmission
length 1.5m 1 |
|
| battery charger | 5V lithium battery charging
stand (optional) |
|

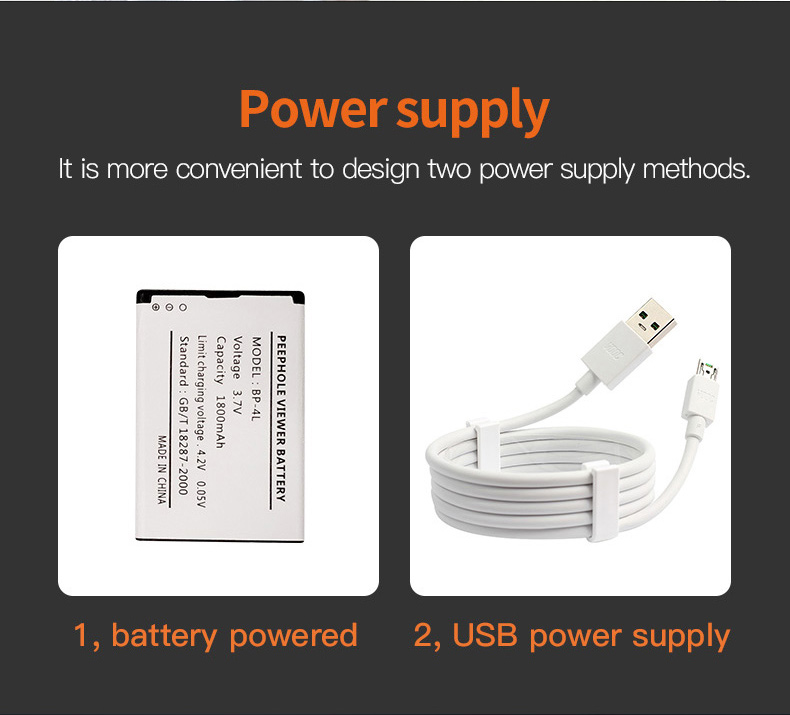

| battery | 3.7V 1800MA lithium battery comes
standard with 1 block |
|

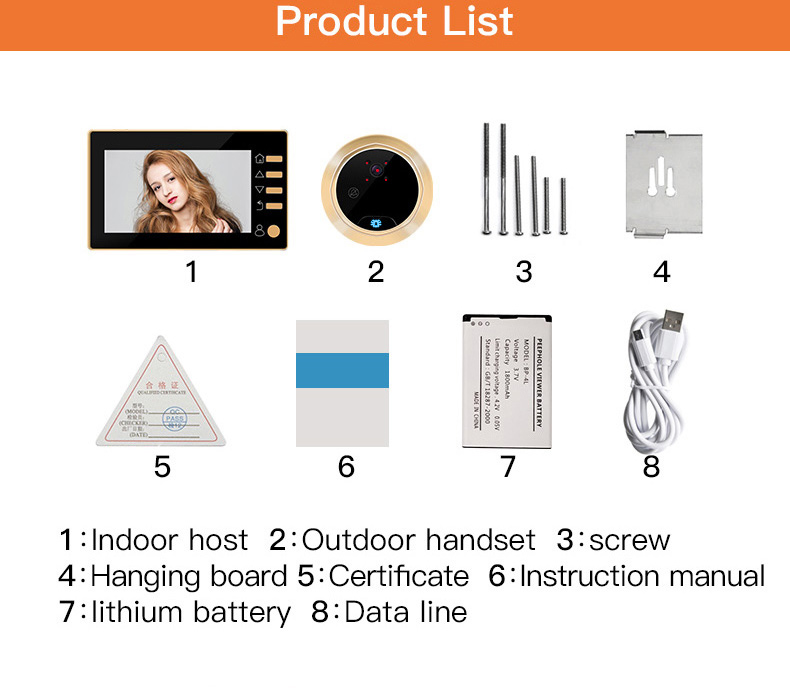

| External host | 1 |
| Camera | 1 |
| charging line | 1 |
| screw | 8 |
| hanging board | 1 |
| certificate | 1 |
| after-sales service card | 1 |
| product manual | 1 |
| battery | optional |
| memory card | optional |
